E2000 Series Switches

COMMANDO SOLDIER E2000 Series Managed Switches

Data Sheet CLI Guide Configuration Guide Software Comparison Gallery YouTube

COMMANDO SOLDIER E2000 Series Managed Switches

COMMANDO Soldier E2000 L2+ Access Series Managed Switches are Carrier Grade high-performance switch which helps it to meet the requirement of High end campus, Metro/Enterprise networks.

Full feature software Licensee free for Lifetime

  • Full featured without license installations: COMMANDO SoldierOS switches comes with inbuilt free for lifetime for across all model that provides you with an easier, faster, and more consistent experience across the COMMANDO portfolio and across your company for inbuilt all license installation.
  • No Activation key required: No requirement of PAK (Product Activation Key) to activate L2+ features.
  • Operational Flexibility: Free patching to enhance features for enhanced version of SoldierOS, with the  objective of providing a free licensing solution that does not interrupt the operations of network.
  • Limitless term period for consumption: For limitless time, permanent and without an expiration date and limitless term period software features can be used. You can consume all features for whatever period you like.

Higher serviceability and return on investment

  • Lower CAPEX: Ensures network scalability and reduces investment in devices. Lowers Total Cost of Ownership with no license requirement (Lowers Capex).
...read more
COMMANDO Networks - 0 / 0
1
C2000-48GP+8CF -- COMMANDO C2000 48GE Full PoE/PoE+, 4GE/4SFP Combo Uplinks, 800W, Managed Switch
29 Apr 2024
2
E300-8P+2FE-24V --- COMMANDO Scout E300 8FE 24V Full PoE, 2FE Uplinks, 130W, Unmanaged Switch
29 Apr 2024
3
E300-8GP+2GE --- COMMANDO Scout E300 8GE Full PoE/PoE+, 2GE Uplinks, 130W, Unmanaged Switch
29 Apr 2024
4
IE1000-8GP+2SFP -- COMMANDO IE1000 8GE Full PoE/Full PoE+, 2SFP Uplinks, Unmanaged Industrial Switch
26 Feb 2024
5
C3000-48GP+6X -- COMMANDO Soldier C3000 48GE PoE+, 6x10G SFP+ Uplinks, 800W, Routing Switch
15 Sep 2023
6
C3500-24X+2C -- COMMANDO Marshall C3500 24x10G SFP+, 2x100G QSFP28 Uplinks, Fiber Routing Switch
15 Sep 2023
7
C3500-24X+2Q -- COMMANDO Marshall C3500 24x10G SFP+, 2x40G QSFP+ Uplinks, Fiber Routing Switch
15 Sep 2023
8
C3500-24X -- COMMANDO Marshall C3500 24x10G SFP+, Fiber Routing Switch
15 Sep 2023
9
NTP Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
28 Mar 2023
10
Device Management Configuration - COMMANDO C3500 Series Core & Data Center L3+ Routing Switch
24 Mar 2023
11
Mirror Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
24 Mar 2023
12
Syslog Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
24 Mar 2023
13
DDoS Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
23 Mar 2023
14
TACACS+ Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
23 Mar 2023
15
AAA Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
22 Mar 2023
16
E300-8P+2FE -- COMMANDO Scout E300 8FE PoE+, 2FE Uplinks, 120W, Unmanaged Switch -- 8+2 PoE Switch
22 Mar 2023
17
E300-4P+2FE -- COMMANDO Scout E300 4FE PoE+, 2FE Uplinks, 65W, Unmanaged Switch -- 4+2 PoE Switch
22 Mar 2023
18
IP Source Guard Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
21 Mar 2023
19
DHCP Snooping Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
21 Mar 2023
20
ARP Inspection Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
20 Mar 2023
21
C2000-8SFP+4CF -- COMMANDO Soldier C2000 8SFP, 2GE+2SFP Uplinks, Fiber Managed Switch -- 8+4 SFP
16 Mar 2023
22
Default, Static, Connected Route Configurations - COMMANDO Marshall C3500 Series L3+ Routing Switch
03 Mar 2023
E2000 Series PoE Software Highlight

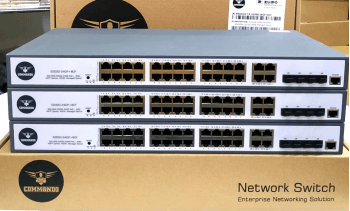

E2000-24GP+8CF

COMMANDO Soldier E2000 24GE Full PoE/PoE+, 4GE/4SFP Combo Uplinks, 450W, Managed Switch


• 24 x 10/100/1000Mbps Ethernet PoE+ ports
• 4 x 10/100/1000Mbps Ethernet / 4 x 1G SFP Uplink ports
• 1 x RJ45 Console port
• 24 x IEEE802.3af 15.4W PoE ports
• 12 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 56 Gbps
• Thunder Protection: ±4 KV
• Power: 450W
• 1 Temperature Control Fan
• Power Supply: AC
• AC: 180~240V 50/60Hz
• SoldierOS L2+ Software Feature Set
• L2+GigE PoE+ Managed Switch
• 3 Year Extendable Warranty

https://www.commandonetworks.com/switches

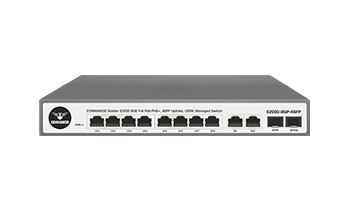

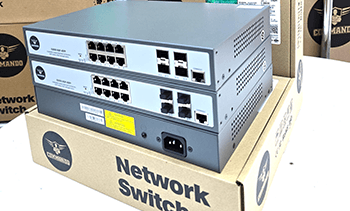

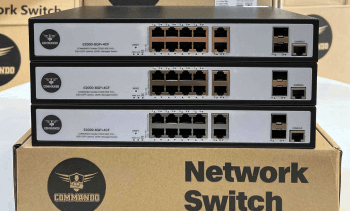

E2000-8GP+4CF

COMMANDO Soldier E2000 8GE Full PoE/PoE+, 2GE+2SFP Uplinks, 150W, Managed Switch


• 8 x 10/100/1000Mbps Ethernet PoE+ ports
• 2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
• 1 x RJ45 Console port
• 8 x IEEE802.3af 15.4W PoE ports
• 4 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 24 Gbps
• Thunder Protection: ±4 KV
• Power: 150W
• Power Supply: AC
• AC: 100~240V 50/60Hz
• SoldierOS L2+ Software Feature Set
• L2+ GigE PoE+ Managed Switch
• 3 Year Extendable Warranty

https://www.commandonetworks.com/switches

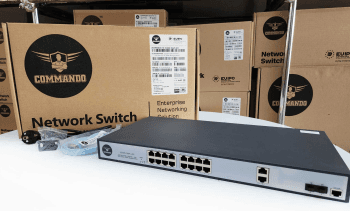

E2000-16GP+4CF

COMMANDO Soldier E2000 16GE Full PoE/PoE+, 2GE+2SFP Uplinks, 260W, Managed Switch


• 16 x 10/100/1000Mbps Ethernet PoE+ ports
• 2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
• 1 x RJ45 Console port
• 16 x IEEE802.3af 15.4W PoE ports
• 8 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 40 Gbps
• Thunder Protection: ±4 KV
• Power: 260W
• 1 Temperature Control Fan
• Power Supply: AC
• AC: 180~240V 50/60Hz
• SoldierOS L2+ Software Feature Set
• L2+ GigE PoE+ Managed Switch
• 3 Year Extendable Warranty

https://www.commandonetworks.com/switches

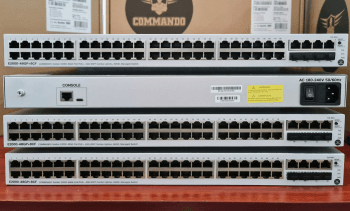

E2000-48GP+8CF

COMMANDO Soldier E2000 48GE PoE/PoE+, 4GE/4SFP Combo Uplinks, 600W, Managed Switch


• 48 x 10/100/1000Mbps Ethernet PoE+ ports
• 4 x 10/100/1000Mbps Ethernet / 4 x 1G SFP Uplink ports
• 1 x RJ45 Console port
• 38 x IEEE802.3af 15.4W PoE ports
• 18 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 104 Gbps
• Thunder Protection: ±4 KV
• Power: 600W
• 3 Temperature Control Fans
• Power Supply: AC
• AC: 180~240V 50/60Hz
• SoldierOS L2+ Software Feature Set
• L2+ GigE PoE+ Managed Switch
• 3 Year Extendable Warranty

https://www.commandonetworks.com/switches

SOFTWARE HIGHLIGHTS (SoldierOS L2+)

Highlights:

• DHCP Server
• Intelligent PoE Scheduling
• Watchdog Function
• Dual Image
• Automated Traffic Control
• Sflow
• Traffic Segmentation
• MAC Notification

L3 Features:

• L3 Static/Default Route
• Gratuitous ARP
• IPv6

L2 Features:

• MAC Table 8K to 16K
• 802.3x Flow Control
• Back Pressure
• HOL Blocking Prevention
• Jumbo Frame
• ERPS
• Port Mirroring
• RSPAN
• Auto Loopback Detection and Prevention
• L2 Protocol Tunneling
• Link Aggregation Static / 802.3ad LACP
• STP/RSTP/MSTP
• IGMP Snooping v1/v2/v3
• Multicast VLANs
• MLD v1/v2 Snooping
• PIM Snooping
• VLAN - IP Subnet / Protocol / Voice / Surveillance / MAC based / Q in Q / Guest
• IEEE802.1Q with 4K VLAN groups and 4K VIDs
• GARP/GVRP
• Auto-negotiation for Port speed, PoE Power and Duplex mode with Flow Control
• VLAN Trunking
• Traffic Segmentation
• IGMP Querier / Snooping v1, v2, v3 / Throttling / Filtering / Immediate Leave
• MVR
• Mirror - Port Based (One to One, Many to One) / VLAN based / MAC based
• Ethernet Ring Protection Switching

QoS Features:

• Queue Scheduling: SP, WRR, SP+WRR
• Traffic classification based on Port / IEEE 802.1p / DSCP
• Enhanced QoS (Shaping /Re-Marking)
• DiffServ
• Port based Egress / Igress Rate limiting
• Flow based Rate Limit
• Voice VLAN
• Surveillance VLAN

Security Features:

• IP-MAC-Port-VID Binding
• DoS Defend
• Dynamic ARP Inspection
• 802.1x Authentication
• RADIUS / TACACS+
• ACL L4 / L3 / L2 / ARP / Time
• Storm Control
• HTTPS / SSLv2 / v3 / TLSv1 Secure Web Access
• Secure Remote with SSH v1/V2
• MAC Authentication with Dynamic VLAN / Dynamic QoS / Authentication By-pass
• Web Authentication
• Port Security with Violation Action Trap and/or Shutdown
• AAA Model
• Local user database
• DHCP Snooping & Option 82
• ARP Inspection
• IP Source Guard
• IP Filter for Web, SNMP , TELNET
• Automatic Traffic Control (ATC) for Broadcast and Multicast

Management Features:

• User friendly Web GUI
• Feature rich and standard CLI
• SNMP v1/v2c/v3
• RMON (1, 2, 3, 9 Groups)
• DHCP Server / Client / Snooping / Option 82
• CPU Monitoring
• Cable Diagnostics
• Ping / Trace route
• SNTP
• System Log
• Login Banner
• CLI via Console port or Telnet/SSH
• SNMP v1, v2c, v3 with MAC Notification Trap
• Firmware Upgrade via TFTP/FTP/HTTP
• Configuration file Upload / Download via TFTP/FTP/HTTP
• BOOTP, DHCP Client
• SNTP
• LLDP (802.1ab) and LLDP-MED
• DNS
• Event/Error log / System log
• Remote Syslog
• SMTP Support for logs
• CPU and Memory Utilization Monitoring
• Ports Statistics and Chart
• Cable Diagnostic
• Scheduled Reload
• Reset to Factory Default
• Energy Efficient Ethernet IEEE 802.3az

https://www.commandonetworks.com/switches/E2000
