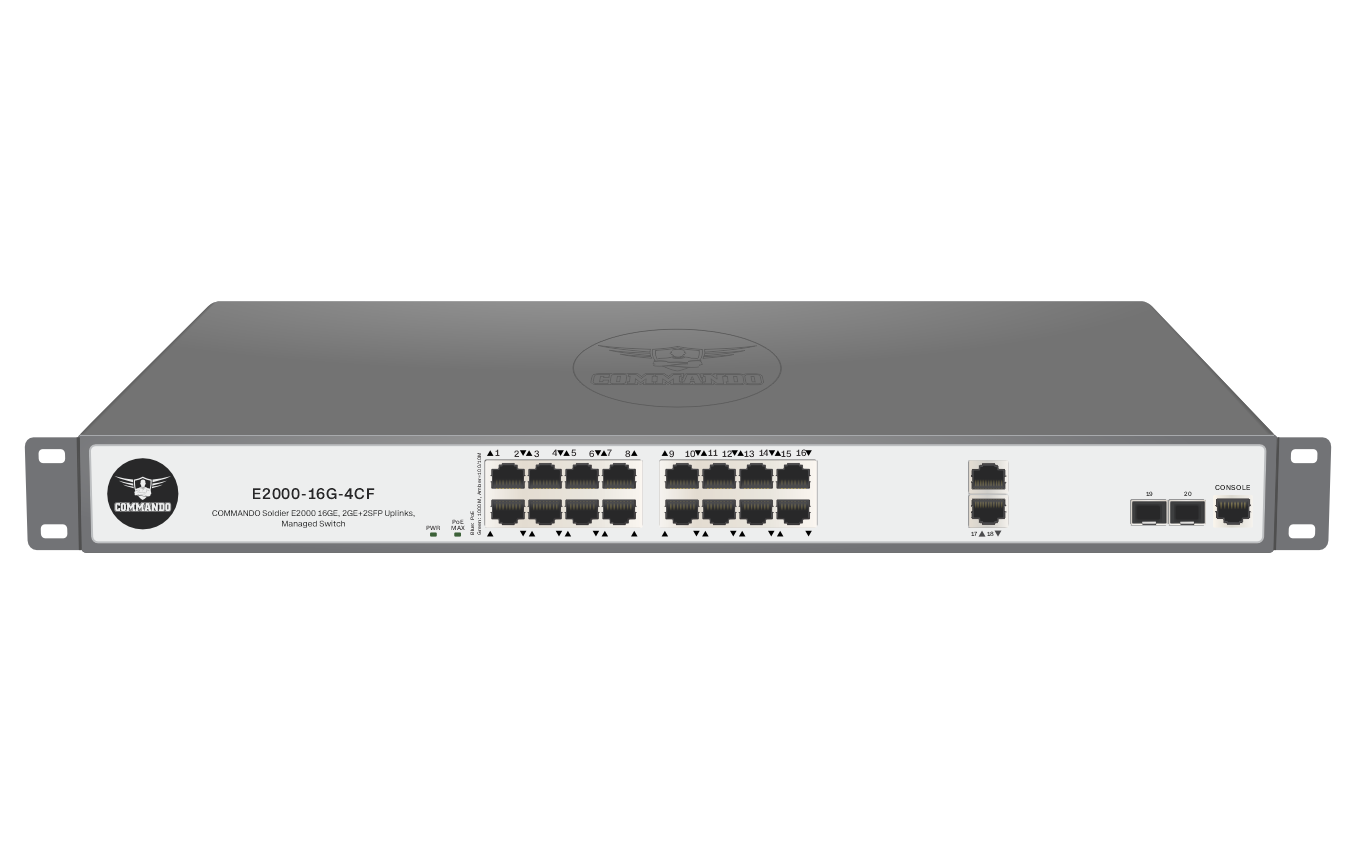

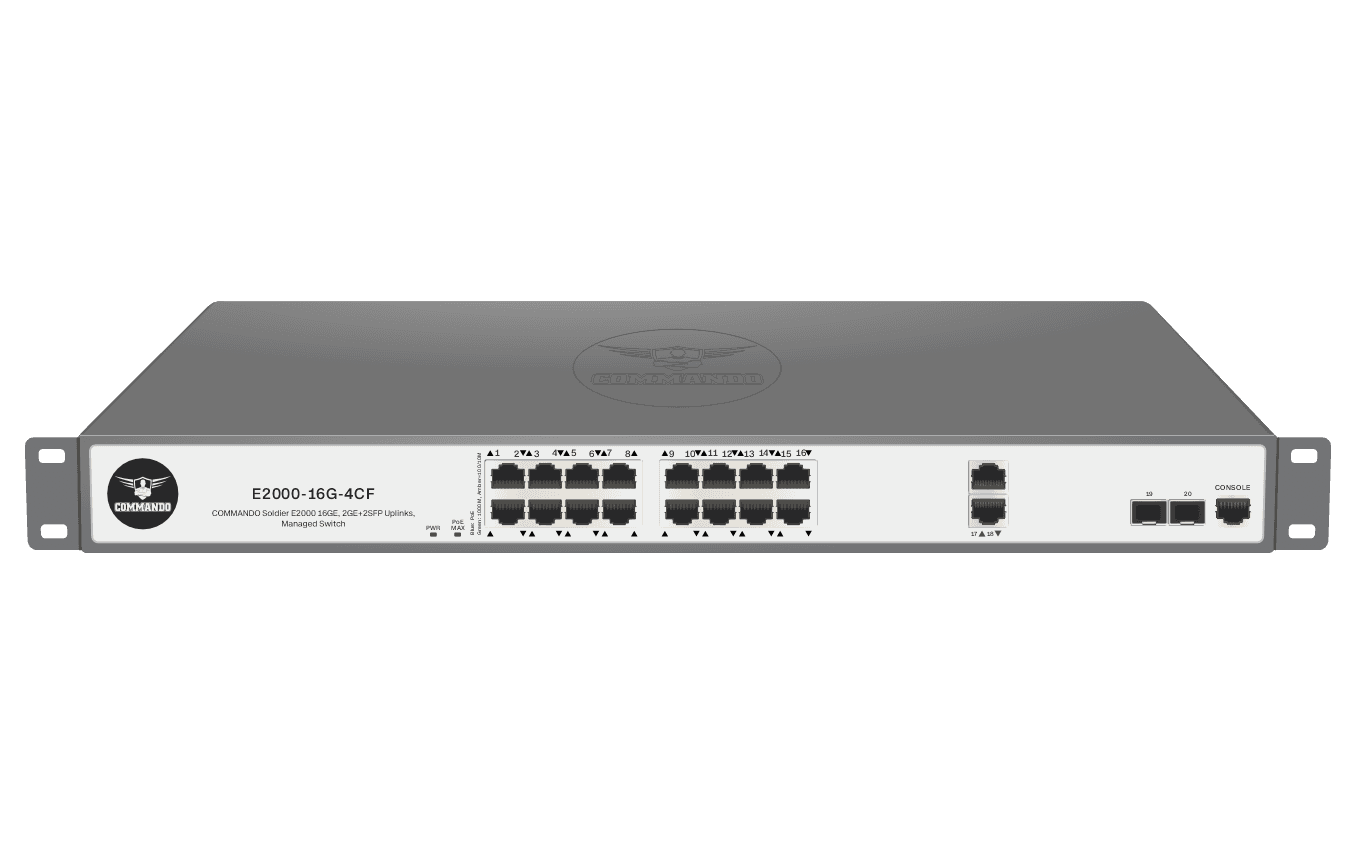

• 16 x 10/100/1000Mbps Ethernet ports
• 2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
• 1 x RJ45 Console port
• Switching Capacity: 40 Gbps
• Thunder Protection: ±4 KV
• Power: 24W
• 1 Temperature Control Fan
• Power Supply: AC
• AC: 100~240V 50/60Hz
• SoldierOS L2+ Software Feature Set
• L2+ GigE PoE+ Managed Switch
• 3 Year Extendable Warranty
SOFTWARE HIGHLIGHTS (SoldierOS L2+)
Highlights:
• DHCP Server
• Intelligent PoE Scheduling
• Watchdog Function
• Dual Image
• Automated Traffic Control
• Sflow
• Traffic Segmentation
• MAC Notification
L3 Features:
• L3 Static/Default Route
• Gratuitous ARP
• IPv6
L2 Features:
• MAC Table 8K to 16K
• 802.3x Flow Control
• Back Pressure
• HOL Blocking Prevention
• Jumbo Frame
• ERPS
• Port Mirroring
• RSPAN
• Auto Loopback Detection and Prevention
• L2 Protocol Tunneling
• Link Aggregation Static / 802.3ad LACP
• STP/RSTP/MSTP
• IGMP Snooping v1/v2/v3
• Multicast VLANs
• MLD v1/v2 Snooping
• PIM Snooping
• VLAN - IP Subnet / Protocol / Voice / Surveillance / MAC based / Q in Q / Guest
• IEEE802.1Q with 4K VLAN groups and 4K VIDs
• GARP/GVRP
• Auto-negotiation for Port speed, PoE Power and Duplex mode with Flow Control
• VLAN Trunking
• Traffic Segmentation
• IGMP Querier / Snooping v1, v2, v3 / Throttling / Filtering / Immediate Leave
• MVR
• Mirror - Port Based (One to One, Many to One) / VLAN based / MAC based
• Ethernet Ring Protection Switching
QoS Features:
• Queue Scheduling: SP, WRR, SP+WRR
• Traffic classification based on Port / IEEE 802.1p / DSCP
• Enhanced QoS (Shaping /Re-Marking)
• DiffServ
• Port based Egress / Igress Rate limiting
• Flow based Rate Limit
• Voice VLAN
• Surveillance VLAN
Security Features:
• IP-MAC-Port-VID Binding
• DoS Defend
• Dynamic ARP Inspection
• 802.1x Authentication
• RADIUS / TACACS+
• ACL L4 / L3 / L2 / ARP / Time
• Storm Control
• HTTPS / SSLv2 / v3 / TLSv1 Secure Web Access
• Secure Remote with SSH v1/V2
• MAC Authentication with Dynamic VLAN / Dynamic QoS / Authentication By-pass
• Web Authentication
• Port Security with Violation Action Trap and/or Shutdown
• AAA Model
• Local user database
• DHCP Snooping & Option 82
• ARP Inspection
• IP Source Guard
• IP Filter for Web, SNMP , TELNET
• Automatic Traffic Control (ATC) for Broadcast and Multicast
Management Features:
• User friendly Web GUI
• Feature rich and standard CLI
• SNMP v1/v2c/v3
• RMON (1, 2, 3, 9 Groups)
• DHCP Server / Client / Snooping / Option 82
• CPU Monitoring
• Cable Diagnostics
• Ping / Trace route
• SNTP
• System Log
• Login Banner
• CLI via Console port or Telnet/SSH
• SNMP v1, v2c, v3 with MAC Notification Trap
• Firmware Upgrade via TFTP/FTP/HTTP
• Configuration file Upload / Download via TFTP/FTP/HTTP
• BOOTP, DHCP Client
• SNTP
• LLDP (802.1ab) and LLDP-MED
• DNS
• Event/Error log / System log
• Remote Syslog
• SMTP Support for logs
• CPU and Memory Utilization Monitoring
• Ports Statistics and Chart
• Cable Diagnostic
• Scheduled Reload
• Reset to Factory Default
• Energy Efficient Ethernet IEEE 802.3az
