COMMANDO Wireless Bridge Wireless Series

COMMANDO AirONE Outdoor Wireless Access Point enables communication between wireless and wired computers/laptops and mobile devices in the network. It complies with IEEE 802.11b/g/n standard and comes with single band 2.4GHz with MIMO High Gain Omni 5dBi Internal Antenna. It has separate Fast Ethernet 1 WAN with 24V POE input & 1 LAN port along with IP65 casing. It has a wireless speed of up to 300Mbps meaning you do not need buffering when surfing, downloading and streaming videos. The quality of the video makes it ideal for connecting surveillance camera systems. Unlike traditional enterprise Wi-Fi systems that required a controller. It comes as a standalone device.

It is designed for the Outdoors with weather resistant IP65 case specifically for outdoor installations. It has 5 in 1 mode outdoor Access Point with Gateway, Repeater, WISP, Super WDS and Wireless AP mode with range up to 400 meters and above with 1000mW input Power. It is industrial grade Outdoor AP with bridging capability up to 4 devices with great communication efficiency, with combined Concurrent speed up to 300Mbps Wi-Fi speed.

COMMANDO Networks - 0 / 0

How to Install and Configure Wireless Bridge - COMMANDO AirONE AIR-WB-1K / AIR-CPE1K+, 802.11n

03 Feb 2023

AIR-WB5G-3K-PRO

COMMANDO AirPRO 3KM, 300Mbps, 5GHz, 802.11n, 10dBi, 20dBm, 2×2 MIMO, Cloud Wireless Bridge

• Operation Modes: Wireless Client, AP Repeater, Mesh

• Wireless Security: WEP Encryption-64/128/152 bit, WPA/WPA2 Personal Encryption (WPA-PSK using TKIP or AES), WPA/WPA2 Enterprise Encryption (WPA-EAP using TKIP)

• Wireless Setting: Support TDMA Support multiple SSID

• Wireless Speed: 300Mbps

• Distance Covered: Up to 3KM

• Antenna Type: 2×2 MIMO 10dBi Internal

• Transmit Power: 20dBm

• Wireless Standards: IEEE802.11 a/n

• Interface: 1*10/100Base-TX port

• Frequency: 5GHz

• Power Supply: 24V PoE

• Dimension: 260×100×60mm

• Flash: 8 MB

• RAM: 64 MB

• Restore factory default: 1* Reset Button/ Software based

• Operating and Storage Temperature: -40°C to +70°C

• Operating Humidity: 5%~95%RH Non-Condensing

https://www.commandonetworks.com/wireless/AIR-WB5G-3K-PRO

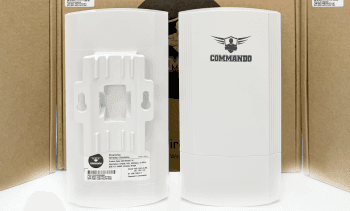

AIR-CPE1K+

COMMANDO AirONE 1KM+, 300Mbps, 2.4GHz, 802.11n, MIMO, Wireless Bridge

• Operation Modes: AP, Super WDS, Repeater, Gateway Modes

• Wireless data rate: 300Mbps

• Distance covered: Up to 1KM

• Encryption: WPA/WPA2PSK_TKIPAES

• Wi-Fi analysis: Inbuilt Wi-Fi channel analysis.

• Standard: IEEE802.11b/g/n

• Frequency: 2.4GHz

• WAN: 1x 10/100Mbps

• LAN: 1x 10/100Mbps

• Casing: Weatherproof Enclosure with IP65

• POE Power: Support 24V POE

• Antenna: 11dBi Panel Antenna

• RF Power: 100mW

• Lightning Level: Common mode: 6KV; Differential mode +2kV

• Flash/RAM: 8MB/64MB

• PoE IN: 24V, 0.5A

• DC IN: 12V, 0.5A

• Restore factory default: 1x Reset Button/ Software based

• Operating and Storage Temperature: -40°C to +70°C

• Operating Humidity: 5%~95%RH Non-Condensing

https://www.commandonetworks.com/wireless/AIR-CPE1K+

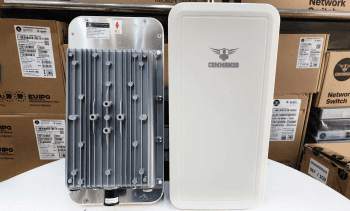

AIR-WB5G-10K-HG

COMMANDO AirNET 10KM, 867Mbps, 5GHz, 802.11ac, 2x16dBi High Gain Ant, 25dBm, 1GE, Wireless Bridge

• Operation Modes: AP, Super WDS, Repeater, Gateway Modes

• Wireless data rate: 867Mbps

• Distance covered: Up to 10KM

• Encryption: WPA/WPA2-PSK

• Wi-Fi analysis: Inbuilt Wi-Fi channel analysis.

• Standard: IEEE802.11ac/a

• Frequency: 5.8GHz

• WAN: 1 x 10/100/1000Mbps

• LAN: 1 x 10/100/1000Mbps

• Casing: Weatherproof Enclosure with IP65

• POE Power: 24V Passive POE

• Antenna: 15dBi Panel Antenna

• RF Power: 500mW

• Lightning Level: Common mode: 6KV; Differential mode +2kV

• Flash/RAM: 16MB/128MB

• PoE IN: 24V, 1A

• DC IN: 12V, 1A

• Restore factory default: 1x Reset Button/ Software based

• Operating and Storage Temperature: -40°C to +70°C

• Operating Humidity: 5%~95%RH Non-Condensing

https://www.commandonetworks.com/wireless/AIR-WB5G-10K-HG

AIR-WB5G-3K-ACE

COMMANDO AirACE 3KM, 300Mbps, 5GHz, 802.11a/n, 23dBm, IP65, Wireless Bridge

• Operation Modes: AP, Super WDS, Repeater, Gateway Modes

• Wireless data rate: 300Mbps

• Distance covered: Up to 3KM

• Encryption: WPA/WPA2-PSK

• Wi-Fi analysis: Inbuilt Wi-Fi channel analysis.

• Standard: IEEE802.11ac/a

• Frequency: 5.8GHz

• WAN: 1 x 10/100/1000Mbps

• LAN: 1 x 10/100/1000Mbps

• Casing: Weatherproof Enclosure with IP65

• POE Power: 24V Passive POE

• Antenna: 15dBi Panel Antenna

• RF Power: 500mW

• Lightning Level: Common mode: 6KV; Differential mode +2kV

• Flash/RAM: 16MB/128MB

• PoE IN: 24V, 1A

• DC IN: 12V, 1A

• Restore factory default: 1x Reset Button/ Software based

• Operating and Storage Temperature: -40°C to +70°C

• Operating Humidity: 5%~95%RH Non-Condensing

https://www.commandonetworks.com/wireless/AIR-WB5G-3K-ACE

AIR-WB450-1K

COMMANDO AirX 450Mbps, 5.8GHz, 8dBi, 802.11ac, P2P/P2MP, 1KM Enterprise Wireless Bridge

• Standalone/Autonomous/FAT mode of operation supporting multiple operational modes like Bridge Access Point, Bridge Client mode (Default mode is Bridge Access mode).

• Supports wireless bridge distance up to 1km with wireless speed of up to 450Mbps depending on surrounding conditions.

• It provides 10/100Mbps wired access, with a total throughput of 90+Mbps.

• Default bridged SSID hiding, WPA2 data encryption, effectively ensuring user data security.

• Designed with an outdoor IP65-rated shell, providing protection against wind, rain, dust, and sun exposure.

• Flexible power supply options, supporting 24V PoE remote power supply and 12V, 1Amp DC local power supply, with a PoE Ethernet remote power supply distance of up to 70 meters.

• Provides 802.11a/n/ac Wi-Fi 450Mbps wireless transmission

• High-gain antennas paired with built-in dual-polarization 8dBi directional panel antenna (horizontal beamwidth 65°, vertical beamwidth 30°).

• Dual input for power either Support 24V POE 0.5A or DC power inputs 12V, 1A.

• Rich status indicator lights like PWR, Port status, Signal strength, Numeric Display for easy understanding of device operation status.

• Management with the help of WEB GUI. Simple and clear web management interface for easy bridge configuration.

• No need for professional knowledge or computer operation, easily pair the bridge through dial switches and buttons, supporting interconnection of up to eight points.

• Easily adapting to various harsh outdoor environments with Operating -30℃～55℃ and Storage Temperature -40℃～70℃.

• Support wireless RF power adjustable as per user movements from bridge.

• Supports intelligent load balance based on users.

• Support seamless roaming and low-rate terminal access.

• Support inbuilt Wi-Fi channel analyzer.

• Dual purposes LAN port supporting 1x 10/100Mbps.

• Compact IP65 casing waterproof, dust proof and sunscreen shell which avoid the damage from dust & rainy weather. Meantime, it is adaptive to various environment.

• Compact in size, supports wall mounting or pole installation, making installation simple.

• Silent design perfect for noise sensitive environments.

• With Zero Touch Provisioning: Plug and play and no setup. Affordable, Easy-to-Use AP for small and medium business networks, with Zero Configuration Required.

• Built-in High-Performance Processor with long life, Suitable for Deployment of Large scale Commercial Scenarios.

• Industrial-grade components with anti-high and low-temperature design, built-in multiple protections such as electrostatic discharge, surge, and rapid pulse, easily adapt to various demanding environments, ensuring long-term stability and reliability.

• Comes with one-year default warranty – optionally extendable up to 3 years.

https://www.commandonetworks.com/wireless/AIR-WB450-1K

AIR-WB450-3K

COMMANDO AirX 450Mbps, 5.8GHz, 12dBi, 802.11ac, P2P/P2MP, 3KM Enterprise Wireless Bridge

• Standalone/Autonomous/FAT mode of operation supporting multiple operational modes like Bridge Access Point, Bridge Client mode (Default mode is Bridge Access mode).

• Supports wireless bridge distance up to 3km with wireless speed of up to 450Mbps depending on surrounding conditions.

• It provides 10/100Mbps wired access, with a total throughput of 90+Mbps.

• Default bridged SSID hiding, WPA2 data encryption, effectively ensuring user data security.

• Designed with an outdoor IP65-rated shell, providing protection against wind, rain, dust, and sun exposure.

• Flexible power supply options, supporting 24V PoE remote power supply and 12V DC local power supply, with a PoE Ethernet remote power supply distance of up to 70 meters.

• Provides 802.11a/n/ac Wi-Fi 450Mbps wireless transmission

• High-gain antennas paired with Built-in dual-polarization 12dBi directional panel antenna (horizontal beamwidth 60°, vertical beamwidth 60°).

• Rich status indicator lights like PWR, port status, Signal strength, numeric display for easy understanding of device operation status.

• Management with the help of WEB GUI. Simple and clear web management interface for easy bridge configuration.

• No need for professional knowledge or computer operation, easily pair the bridge through dial switches and buttons, supporting interconnection of up to eight points.

• Easily adapting to various harsh outdoor environments with Operating -30℃～55℃ and Storage Temperature -40℃～70℃.

• Support wireless RF power adjustable as per user movements from bridge.

• Supports intelligent load balance based on users.

• Support seamless roaming and low-rate terminal access.

• Support inbuilt Wi-Fi channel analyzer.

• Dual purposes two LAN port supporting 2x 10/100Mbps.

• Compact IP65 casing waterproof, dust proof and sunscreen shell which avoid the damage from dust & rainy weather. Meantime, it is adaptive to various environment.

• Compact in size, supports wall mounting or pole installation, making installation simple.

• Silent design perfect for noise sensitive environments.

• With Zero Touch Provisioning: Plug and play and no setup. Affordable, Easy-to-Use AP for small and medium business networks, with Zero Configuration Required.

• Built-in High-Performance Processor with long life, Suitable for Deployment of Large scale Commercial Scenarios.

• Comes with one-year default warranty – optionally extendable up to 3 years.

https://www.commandonetworks.com/wireless/AIR-WB450-3K

AIR-WB900-5K

COMMANDO AirX 900Mbps, 5.8GHz, 14dBi, 802.11ac, P2P/P2MP, 5KM Enterprise Wireless Bridge

• Standalone/Autonomous/FAT mode of operation supporting multiple operational modes like Gateway, Master and Slave mode.

• Supports wireless bridge distance up to 5km with wireless speed of up to 900Mbps depending on surrounding conditions.

• It has two Ethernet ports one is adaptive WAN/LAN port with speed 1* 10/100/1000Mbps and other LAN*1 10/100Mbps.

• Dual Ethernet ports (1000Mbps & 100Mbps) for wired access, with a total throughput of 400+Mbps.

• Default bridged SSID hiding, WPA2 data encryption, effectively ensuring user data security.

• Designed with an outdoor IP65-rated shell, providing protection against wind, rain, dust, and sun exposure.

• Flexible power supply options, supporting 24V PoE remote power supply and 12V DC, 1Amp local power supply, with a PoE Ethernet remote power supply distance of up to 70 meters.

• Provides 802.11a/n/ac Wi-Fi 900Mbps wireless transmission

• High-gain antennas paired with Built-in dual-polarization 14dBi directional panel (horizontal beamwidth 60°, vertical beamwidth 60°).

• Rich status indicator lights like PWR, port status, Signal strength, numeric display for easy understanding of device operation status.

• Management with the help of WEB GUI. Simple and clear web management interface for easy bridge configuration.

• No need for professional knowledge or computer operation, easily pair the bridge through dial switches and buttons, supporting interconnection of up to eight points.

• Easily adapting to various harsh outdoor environments with Operating -30℃～55℃ and Storage Temperature -40℃～70℃.

• Support wireless RF power adjustable as per user movements from bridge.

• Supports intelligent load balance based on users.

• Support seamless roaming and low-rate terminal access.

• Support inbuilt Wi-Fi channel analyzer.

• Compact IP65 casing waterproof, dust proof and sunscreen shell which avoid the damage from dust & rainy weather. Meantime, it is adaptive to various environment.

• Compact in size, supports wall mounting or pole installation, making installation simple.

• Silent design perfect for noise sensitive environments.

• With Zero Touch Provisioning: Plug and play and no setup. Affordable, Easy-to-Use AP for small and medium business networks, with Zero Configuration Required.

• Built-in High-Performance Processor with long life, Suitable for Deployment of Large scale Commercial Scenarios.

• Comes with one-year default warranty – optionally extendable up to 3 years.

https://www.commandonetworks.com/wireless/AIR-WB900-5K

AIR-WB900-10K

COMMANDO AirX 900Mbps, 5.8GHz, 17dBi, MU-MIMO 802.11ac Wave 2, P2P/P2MP, 10KM Enterprise Wireless Bridge

• Standalone/Autonomous/FAT mode of operation supporting multiple operational modes like AP, Station and Repeater .

• Supports wireless bridge distance up to 10km with wireless speed of up to 900Mbps depending on surrounding conditions.

• It has two Ethernet ports one is adaptive WAN/LAN port with speed 2* 10/100/1000Mbps.

• Dual Ethernet ports for wired access, with a total throughput of 500+Mbps.

• Default bridged SSID hiding, WPA2 data encryption, effectively ensuring user data security.

• Designed with an outdoor IP65-rated shell, providing protection against wind, rain, dust, and sun exposure.

• Flexible power supply options, supporting 48V, 802.3af/at PoE remote power supply and 12V DC, 1.5Amp local power supply, with a PoE Ethernet remote power supply distance of up to 70meters.

• Provides 802.11a/n/ac Wi-Fi 900Mbps wireless transmission

• High-gain antennas paired with Built-in dual-polarized 17dBi directional flat panel(horizontal beamwidth 20°, vertical beamwidth 20°).

• Management with the help of WEB GUI. Simple and clear web management interface for easy bridge configuration.

• No need for professional knowledge or computer operation, easily pair the bridge through dial switches and buttons, supporting interconnection of up to eight points.

• Easily adapting to various harsh outdoor environments with Operating -40℃～55℃ and Storage Temperature -40℃～70℃.

• Support wireless RF power adjustable as per user movements from bridge.

• Supports intelligent load balance based on users.

• Support seamless roaming and low rate terminal access.

• Support inbuilt Wi-Fi channel analyzer.

• Compact IP65 casing waterproof, dust proof and sunscreen shell which avoid the damage from dust & rainy weather. Meantime, it is adaptive to various environment.

• Compact in size, supports wall mounting or pole installation, making installation simple.

• Silent design perfect for noise sensitive environments.

• With Zero Touch Provisioning: Plug and play and no setup. Affordable, Easy-to-Use AP for small and medium business networks, with Zero Configuration Required.

• Built-in High-Performance Processor with long life, Suitable for Deployment of Large Scale Commercial Scenarios.

• Comes with one-year default warranty – optionally extendable up to 3 years.

https://www.commandonetworks.com/wireless/AIR-WB900-10K
