COMMANDO AirPRO Wireless Bridge

COMMANDO AirPRO Series Wireless Bridge complies with IEEE 802.11ac standard and is backward compatible with IEEE 802.11b/g/n standard along with build in MIMO High Gain 25/16/10dBi MIMO Internal Antenna as per model specifications. All Wireless Bridges Support HI-MAX TDMA Technology which use polling technique to solve the hidden node and resource waste problem between the CPE and base station. It provides low latency, high throughput in PTP/PTMP/MTMP application likes IP camera, long range Wi-Fi Transmission) with Beamforming Technology.

It has IP65 Waterproof and Dust proof Enclosure casing and enables the connection of two or more different local area network (LAN) segments by bridging a wireless connection between them. It works much like a wired network bridge and is used to connect LANs that are logically separated and/or located in different physical locations. It is primarily used in corporate LANs, which often span across geographical locations. At the backend the wireless bridges are connected to the LAN switch or router. For the two network segments to communicate, each data packet travels from the local Ethernet/router to the wireless bridge, which wireless broadcasts it to the wireless bridge of the other LAN segment. Besides point-to-point bridging, a wireless bridge can also be connected to more than one (Up to 4) wireless bridge simultaneously forming a mesh network. Unlike traditional enterprise Wi-Fi systems that required a controller. It comes as a standalone device.

1
R100-PRO -- Cloud Login - COMMANDO AirPRO Multifunction Cloud Router, WLC Firewall w/ Captive portal
02 Mar 2023
2
How to Install and Configure Cloud Wireless Access Point - COMMANDO AirPRO AIR-AP1200-PRO Dual Radio
24 Jan 2023
3
R100-PRO -- How to Install and Configure COMMANDO AirPRO Cloud Router, WLC Firewall Captive portal
20 Jan 2023

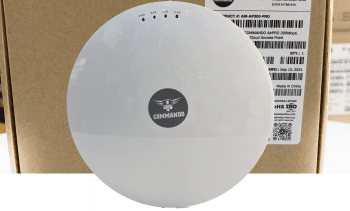

AIR-AP300-PRO

COMMANDO AirPRO 300Mbps, 2x2 MIMO Omni Ant, Cloud Access Point


Highlights

AP: Controller Based
Contoller Supports: DPI (Deep Packet Inspection) Seven Layer Flow Control with One Click Flow Control and Manual Flow Control
Multi-WAN load balance with auto failover recovery for reliable and efficient access
Access Point Management via Easy WEB GUI, Telnet and Cloud based Portal Authentication
AC Intelligent Management Function, works together with COMMANDO PRO Series Access Points, easy Access Point Management
COMMANDO Platform Management, Centralized Management and Maintenance via lifetime free Cloud base account
Standard Wireless Roaming Mechanism (802.11r), Wireless roaming for seamless network experience on the move
VPN for Encrypted Communication, Ensure Remote Access Security
Multi-Vendor WAN Line simultaneous Access, WAN load sharing and balancing by different ISP, Rational use, Load Balancing with failover , Reduce Bandwidth Costs
Wireless Marketing Function, Various Authentication Methods to meet the needs of Different Users and Scenarios
Tag based and port based VLANs to group control and relocate traffic pattern
Full protocol stack for both IPv4 and IPv6, afford to 100+ concurrent users and 100,00 concurrent sessions
IPsec, PPTP and L2TP VPN support up to 64 concurrent tunnels with max 2Gbps throughput (Ipsec).
QoS and Bandwidth Management for optimal bandwidth usage.
High Availability for mission critical application with muti-WAN load balance
Can manage up to 100 APs &unlimited number of users, with Discovery, Configuration, and Monitoring Functions.
User certification by X.509 and authentication by Radius/AD/LDAP server for user and group management.
Multiple WANs, Failover/ Load Balance with configurable Ethernet
Support DHCP based dynamic IP, Static IP, PPPoE, PPTP, L2TP
IPv6 with Dual Stack, 6-in-4, 6-to-4, Dynamic, Static, PPPoE
VLAN Port Based, Tag- based
NAT: ALG, Special AP, DMZ Host, Virtual Server/ Computer, PPTP/ L2TP/IPSec Pass-through, Up to 100,000 Sessions
Routing with Static, Default and Dynamically learn connected route
Client & Server for DHCP, DDNS, IGMP
AP Auto Discovery, Monitoring & Alerting, Profile based Configuration, AP Load balance, AP Blacklisting and Whitelisting
User Accounts, User Grouping, Bound Services
Firewall, Access Control with Packet Filters, URL Blocking, Web Content Filters, Application Filters, MAC filter
3200+ Application Protocol Identification, for more Accurate Flow Control, Improved Bandwidth Utilization
Captive portal for online monitoring of clients
SSID Vlan, divide Vlan for SSID
Independent SSID setting and hiding
Independent setting of signal strength and channels
Custom AP start time and scheduled restart
Support wireless roaming, experience a better network on the move
Max. SSID: 4
Encryption: WPA-PSK, WPA2-PSK and WPA-PSK+WPA2-PSK
Cover Radius (Meters): 20m
User Capacity: 30+
Interface: 1x 10/100 Base-TX port
Frequency: 2.4GHz
Power Supply: 48V PoE+
Dimension: 168X168X32mm
Wireless Standards: IEEE802.11 b/g/n
Transmit Power (dBm): 20dBm

https://www.commandonetworks.com/wireless/AIR-AP300-PRO
AIR-AP1200-PRO

COMMANDO AirPRO 1200Mbps, Dual Radio, 2×2 MU-MIMO Omni Ant, Cloud Access Point


Highlights

AP: Controller Based
Contoller Supports: DPI (Deep Packet Inspection) Seven Layer Flow Control with One Click Flow Control and Manual Flow Control
Multi-WAN load balance with auto failover recovery for reliable and efficient access
Access Point Management via Easy WEB GUI, Telnet and Cloud based Portal Authentication
AC Intelligent Management Function, works together with COMMANDO PRO Series Access Points, easy Access Point Management
COMMANDO Platform Management, Centralized Management and Maintenance via lifetime free Cloud base account
Standard Wireless Roaming Mechanism (802.11r), Wireless roaming for seamless network experience on the move
VPN for Encrypted Communication, Ensure Remote Access Security
Multi-Vendor WAN Line simultaneous Access, WAN load sharing and balancing by different ISP, Rational use, Load Balancing with failover , Reduce Bandwidth Costs
Wireless Marketing Function, Various Authentication Methods to meet the needs of Different Users and Scenarios
Tag based and port based VLANs to group control and relocate traffic pattern
Full protocol stack for both IPv4 and IPv6, afford to 100+ concurrent users and 100,00 concurrent sessions
IPsec, PPTP and L2TP VPN support up to 64 concurrent tunnels with max 2Gbps throughput (Ipsec).
QoS and Bandwidth Management for optimal bandwidth usage.
High Availability for mission critical application with muti-WAN load balance
Can manage up to 100 APs &unlimited number of users, with Discovery, Configuration, and Monitoring Functions.
User certification by X.509 and authentication by Radius/AD/LDAP server for user and group management.
Multiple WANs, Failover/ Load Balance with configurable Ethernet
Support DHCP based dynamic IP, Static IP, PPPoE, PPTP, L2TP
IPv6 with Dual Stack, 6-in-4, 6-to-4, Dynamic, Static, PPPoE
VLAN Port Based, Tag- based
NAT: ALG, Special AP, DMZ Host, Virtual Server/ Computer, PPTP/ L2TP/IPSec Pass-through, Up to 100,000 Sessions
Routing with Static, Default and Dynamically learn connected route
Client & Server for DHCP, DDNS, IGMP
AP Auto Discovery, Monitoring & Alerting, Profile based Configuration, AP Load balance, AP Blacklisting and Whitelisting
User Accounts, User Grouping, Bound Services
Firewall, Access Control with Packet Filters, URL Blocking, Web Content Filters, Application Filters, MAC filter
3200+ Application Protocol Identification, for more Accurate Flow Control, Improved Bandwidth Utilization
Captive portal for online monitoring of clients
SSID Vlan, divide Vlan for SSID
Independent SSID setting and hiding
Independent setting of signal strength and channels
Custom AP start time and scheduled restart
Support wireless roaming, experience a better network on the move
Max. SSID: 8
Encryption: WPA-PSK, WPA2-PSK and WPA-PSK+WPA2-PSK
Cover Radius (Meters): 35m
User Capacity: 130+
Interface: 2x 10/100 Base-TX port
Frequency: 2.4GHz ,5GHz
Power Supply: 48V PoE+
Dimension: 160×160×28mm
Wireless Standards: IEEE802.11 a/b/g/n/ac
Transmit Power (dBm): 26dBm

https://www.commandonetworks.com/wireless/AIR-AP1200-PRO
AIR-WB5G-3K-PRO

COMMANDO AirPRO 3KM, 300Mbps, 5GHz, 802.11n, 10dBi, 20dBm, 2×2 MIMO, Cloud Wireless Bridge


Highlights

Operation Modes: Wireless Client, AP Repeater, Mesh
Wireless Security: WEP Encryption-64/128/152 bit, WPA/WPA2 Personal Encryption (WPA-PSK using TKIP or AES), WPA/WPA2 Enterprise Encryption (WPA-EAP using TKIP)
Wireless Setting: Support TDMA Support multiple SSID
Wireless Speed: 300Mbps
Distance Covered: Up to 3KM
Antenna Type: 2×2 MIMO 10dBi Internal
Transmit Power: 20dBm
Wireless Standards: IEEE802.11 a/n
Interface: 1*10/100Base-TX port
Frequency: 5GHz
Power Supply: 24V PoE
Dimension: 260×100×60mm
Flash: 8 MB
RAM: 64 MB
Restore factory default: 1* Reset Button/ Software based
Operating and Storage Temperature: -40°C to +70°C
Operating Humidity: 5%~95%RH Non-Condensing

https://www.commandonetworks.com/wireless/AIR-WB5G-3K-PRO
