Media Converters

FiberXGigabit

COMMANDO FiberX Media Converters extend networks by converting RJ45 to SFP and vice versa, with auto-negotiation, Spanning Tree, diagnostic LEDs, and Link Fault Pass Through. Housed in compact metallic casing, they support jumbo frames, energy-efficient Ethernet, ESD protection, and perform reliably in harsh conditions.

Media Converters

COMMANDO Media Converters suitable for expanding any network reach. It converts data transferring Ethernet RJ45 to SFP Media Converter and vice a versa. It supports Spanning Tree for loop free networks, Auto MDI/MDI-X, Auto-speed and duplex negotiation. It has diagnostic LEDs for continuous monitoring real-time network status and also support Link Fault Pass Through function. It has Compact metallic casing with Class 1 FDA Laser Safety, EMC Support, Anti Electro-Static Discharge and Radiation Resistant. It has built-in function of broadcast storm suppression, traffic control, CRC error verification. It supports 9216-byte jumbo packet length forwarding along with Energy-Efficient Ethernet(EEE) function (IEEE 802.3az). It is CE, FCC, ROHS, Lead-Free & ISO 9001:2005 compliant and Works in harsh environment with heat dissipation optimization for Operating Temperature from 0°C to 50°C.

No videos available

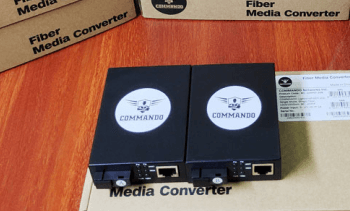

MC-GSMSF-25K

COMMANDO FiberX 1GE, Single Mode, Single Fiber, 1310/1550nm, 25KM, MC

Capable of Gigabit Ethernet connections and provide 1000mbps of data transferring Ethernet RJ45 to SFP Media Converter and vice a versa.
Auto MDI/MDI-X for copper port 10/100/1000Mbps auto-negotiation for copper port along with Half or full duplex auto-negotiation.
Complies with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z.
Extend network distance up to 25km.
SC single fiber port connector with single mode fiber operating at 1310/1550nm.
Support Link Fault Pass Through function
2048-entry MAC address table with 4-way hash algorithm
Supports 9216-byte jumbo packet length forwarding
Built-in function of broadcast storm suppression, traffic control, CRC error verification
EMC Support, Anti Electro-Static Discharge and Radiation Resistant
Class 1 FDA Laser Safety
Full-duplex and half-duplex operation with IEEE 802.3x flow control along with backpressure
Latest optical module technology with plug and play, reduce & lower optical loss
Compensate for optical power attenuation and provides no packets loss
Automatic identification of MDI/MDI-X and cross connections
Diagnostic LEDs for continuous monitoring real-time network status
Supports SPANNING TREE for loop free networks
Power Adapter External DC 5V, 1A with Wide voltage input design, supporting 5 to 12V external adapters
Compact and durable metallic casing with side vent silent design, perfect for noise sensitive environments
Plug and Play design simplifies installation with self-adaption. Easy Installation with no setup with Zero Configuration Required
Competitive and Affordable price with Inbuilt SFP and RJ-45 Port which saves cost. Easy-to-Use Media Converter for Small Business Networks
A wide range of single-channel Media Converters, suitable for expanding any network depending on the speed and distance of the cable length
Works in harsh environment with heat dissipation optimization
Supports Energy-Efficient Ethernet(EEE) function (IEEE 802.3az)
CE, FCC, ROHS, Lead-Free & ISO 9001:2005
Environmental Specifications for Operating Temperature: 0°C~50°C and Humidity: 5%~90% Non-condensing
2-Year Warranty

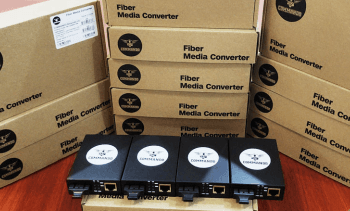

MC-GSMDF-25K

COMMANDO FiberX 1GE, Single Mode, Dual Fiber, 1310nm, 25KM, MC

Capable of Gigabit Ethernet connections and provide 1000mbps of data transferring Ethernet RJ45 to SFP Media Converter and vice a versa
Auto MDI/MDI-X for copper port 10/100/1000Mbps auto-negotiation for copper port along with Half or full duplex auto-negotiation
Complies with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3z
Extend network distance up to 25km
SC dual fiber port connector with single mode fiber operating at 1310nm
Support Link Fault Pass Through function
2048-entry MAC address table with 4-way hash algorithm
Supports 9216-byte jumbo packet length forwarding
Built-in function of broadcast storm suppression, traffic control, CRC error verification
EMC Support, Anti Electro-Static Discharge and Radiation Resistant
Class 1 FDA Laser Safety
Full-duplex and half-duplex operation with IEEE 802.3x flow control along with backpressure
Latest optical module technology with plug and play, reduce & lower optical loss
Compensate for optical power attenuation and provides no packets loss
Automatic identification of MDI/MDI-X and cross connections
Diagnostic LEDs for continuous monitoring real-time network status
Supports SPANNING TREE for loop free networks
Power Adapter External DC 5V, 1A with Wide voltage input design, supporting 5 to 12V external adapters
Compact and durable metallic casing with side vent silent design, perfect for noise sensitive environments
Plug and Play design simplifies installation with self-adaption. Easy Installation with no setup with Zero Configuration Required
Competitive and Affordable price with Inbuilt SFP and RJ-45 Port which saves cost. Easy-to-Use Media Converter for Small Business Networks
A wide range of single-channel Media Converters, suitable for expanding any network depending on the speed and distance of the cable length
Works in harsh environment with heat dissipation optimization
Supports Energy-Efficient Ethernet(EEE) function (IEEE 802.3az)
CE, FCC, ROHS, Lead-Free & ISO 9001:2005
Environmental Specifications for Operating Temperature: 0°C~50°C and Humidity: 5%~90% Non-condensing
2-Year Warranty

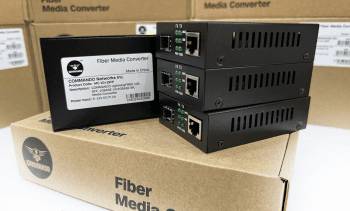

MC-1G+1SFP

COMMANDO FiberX 1GE, SFP, 1GBASE-LR/1GBASE-SR, Media Converter

Capable of Gigabit Ethernet connections and provide 1000mbps of data transferring Ethernet RJ45 to SFP Media Converter and vice a versa.
Auto MDI/MDI-X for copper port 10/100/1000Mbps auto-negotiation for copper port along with Half or full duplex auto-negotiation.
Complies with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z.
As per requirement SFP inserted to extend network distance.
SC single/dual fiber port connector with single/multimode fiber operating at 850/1310/1550nm based on SFP inserted.
Support Link Fault Pass Through function
2048-entry MAC address table with 4-way hash algorithm
Supports 9216-byte jumbo packet length forwarding
Built-in function of broadcast storm suppression, traffic control, CRC error verification
EMC Support, Anti Electro-Static Discharge and Radiation Resistant
Class 1 FDA Laser Safety
Full-duplex and half-duplex operation with IEEE 802.3x flow control along with backpressure
Latest optical module technology with plug and play, reduce & lower optical loss
Compensate for optical power attenuation and provides no packets loss
Automatic identification of MDI/MDI-X and cross connections
Diagnostic LEDs for continuous monitoring real-time network status
Supports SPANNING TREE for loop free networks
Power Adapter External DC 5V, 1A with Wide voltage input design, supporting 5 to 12V external adapters
Compact and durable metallic casing with side vent silent design, perfect for noise sensitive environments
Plug and Play design simplifies installation with self-adaption. Easy Installation with no setup with Zero Configuration Required
Competitive and Affordable price with Inbuilt SFP and RJ-45 Port which saves cost. Easy-to-Use Media Converter for Small Business Networks
A wide range of single-channel Media Converters, suitable for expanding any network depending on the speed and distance of the cable length
Works in harsh environment with heat dissipation optimization
Supports Energy-Efficient Ethernet(EEE) function (IEEE 802.3az)
CE, FCC, ROHS, Lead-Free & ISO 9001:2005
Environmental Specifications for Operating Temperature: 0°C~50°C and Humidity: 5%~90% Non-condensing
2-Year Warranty

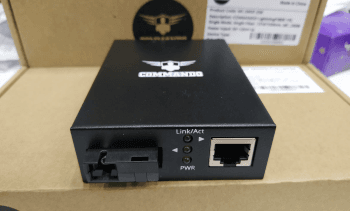

MC-SMSF-3K

COMMANDO FiberX 1FE, NCF, Single Mode, Single Fiber, 1310/1550nm, 3KM, MC

Capable of Fast Ethernet connections and 100Mbps of data transferring Ethernet RJ45 to SFP Media Converter.
Auto MDI/MDI-X for copper port 10/100Mbps auto-negotiation for copper port. Half or full duplex auto-negotiation.
Complies with IEEE 802.3u, IEEE 802.3X, IEEE 802.3
Extend network distance up to 3km.
SC/FC/ST fiber port optional WDM.
Diagnostic LEDs for continuous monitoring real-time network status.
Plug and Play design simplifies installation with self-adaption. Easy Installation with no setup with Zero Configuration Required.
Competitive and Affordable price, Easy-to-Use Media converter for Small Business Networks.
Support Link Fault Pass Through function
Compact metallic casing, silent design perfect for noise sensitive environments.
A wide range of single-channel media converters, suitable for expanding any network depending on the speed and distance of the cable length.
CE, FCC, ROHS and ISO 9001:2005.
2-Year Warranty

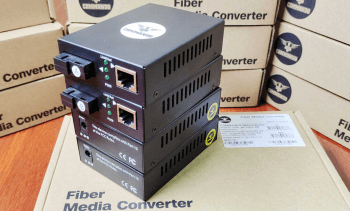

MC-SMSF-25K

COMMANDO FiberX 1FE, NCF, Single Mode, Single Fiber, 1310/1550nm, 25KM, MC

Capable of Fast Ethernet connections and provide 100mbps of data transferring Ethernet RJ45 to SFP Media Converter and vice a versa.
Auto MDI/MDI-X for copper port 10/100Mbps auto-negotiation for copper port along with Half or full duplex auto-negotiation.
Complies with IEEE 802.3i, IEEE 802.3u.
Extend network distance up to 25km.
SC single fiber port connector with single mode fiber operating at 1310/1550nm.
Support Link Fault Pass Through function
2048-entry MAC address table with 4-way hash algorithm
Supports 2048-byte packet length forwarding
Built-in function of broadcast storm suppression, traffic control, CRC error verification
EMC Support, Anti Electro-Static Discharge and Radiation Resistant
Class 1 FDA Laser Safety
Full-duplex and half-duplex operation with IEEE 802.3x flow control along with backpressure
Latest optical module technology with plug and play, reduce & lower optical loss
Compensate for optical power attenuation and provides no packets loss
Automatic identification of MDI/MDI-X and cross connections
Diagnostic LEDs for continuous monitoring real-time network status
Supports SPANNING TREE for loop free networks
Power Adapter External DC 5V, 1A with Wide voltage input design, supporting 5 to 12V external adapters
Compact and durable metallic casing with side vent silent design, perfect for noise sensitive environments
Plug and Play design simplifies installation with self-adaption. Easy Installation with no setup with Zero Configuration Required
Competitive and Affordable price with Inbuilt SFP and RJ-45 Port which saves cost. Easy-to-Use Media Converter for Small Business Networks
A wide range of single-channel Media Converters, suitable for expanding any network depending on the speed and distance of the cable length
Works in harsh environment with heat dissipation optimization
Supports Energy-Efficient Ethernet(EEE) function (IEEE 802.3az)
CE, FCC, ROHS, Lead-Free & ISO 9001:2005
Environmental Specifications for Operating Temperature: 0°C~50°C and Humidity: 5%~90% non-condensing
2-Year Warranty
