AIR-WA150

COMMANDO AirBULLET 150Mbps, 802.11n, Driver-Free, Wireless USB Adapter

Data Sheet Gallery YouTube

AIR-WA150

COMMANDO AirBULLET 150Mbps, 802.11n, Driver-Free, Wireless USB Adapter

Product Highlights

• 150Mbps wireless transmission rate.

• Provides two methods of operation: Infrastructure and Ad-Hoc.

• Supports 64/128-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X.

• Supports Windows XP/Vista/win7/win8/win8.1/win10.

• With internal drive, it can automatically complete installation once plugged into your computer, releasing you from troublesome configuration, and installation using CD or drive.

Specifications

Interface	USB2.0 Hi-Speed connector
Wireless Speed	11n: Up to 150Mbps
Frequency Range	2.4-2.4835GHz
Wireless Transmit Power	20dBm(MAX EIRP)
Modulation Technique	OFDM/CCK/16-QAM/64-QAM
Work Mod	Ad-Hoc / Infrastructure
Wireless Security	64/128 bits WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Temperature Range	Operating: -20ºC to 70ºC, Storage: -40ºC to 90ºC
Humidity	Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing)
Support Operating System	Windows XP/Vista/Linnux/ Win 7/Win 8 /Win8.1 /Win10
Dimensions (H x W x D)	15 x 7 x 19.5 mm

RF Performance Table for 2.4GHz

Data Rate	TX Power	Tolerance
1Mbps	16dBm	±2dB
11Mbps	16dBm	±2dB
6Mbps	15dBm	±2dB
54Mbps	13dBm	±2dB
MCS0	14dBm	±2dB
MCS7	13dBm	±2dB
MCS8	13dBm	±2dB
MCS0	14dBm	±2dB
MCS9	13dBm	±2dB

Data Rate	RX Specifcations Sensitivity	Tolerance
1Mbps	-97dBm	±2dB
11Mbps	-90dBm	±2dB
6Mbps	-92dBm	±2dB
54Mbps	-76dBm	±2dB
MCS0	-92dBm	±2dB
MCS7	-75dBm	±2dB
MCS8	-71dBm	±2dB
MCS0	-89dBm	±2dB
MCS9	-67dBm	±2dB

https://www.commandonetworks.com//AIR-WA150

COMMANDO Networks - 0 / 0

How to Install and Configure Wireless Bridge - COMMANDO AirONE AIR-WB-1K / AIR-CPE1K+, 802.11n

03 Feb 2023

How to Install and Configure Wireless Bridge - COMMANDO AirONE AIR-WB5G-10K / AIR-CPE10K+, 900Mbps

03 Feb 2023

How to Install and Configure Wireless Bridge - COMMANDO AirONE AIR-CPE10K+ / AIR-WB5G-10K, 900Mbps

01 Feb 2023

How to Install and Configure Ceiling Wireless Access Point - COMMANDO AirONE AIR-AP750 750M 802.11ac

01 Feb 2023

How to Install and Configure Cloud Wireless Access Point - COMMANDO AirPRO AIR-AP1200-PRO Dual Radio

24 Jan 2023

How to Install and Configure Ceiling Wireless Access Point - COMMANDO AirONE AIR-AP300, 802.11n

23 Jan 2023

How to Install and Configure Wi-Fi 6 Wireless Access Point - COMMANDO AirONE AIR-AP1800AX 1800Mbps

16 Jan 2023

Data Sheet

Gallery

YouTube

Click on image to expanded

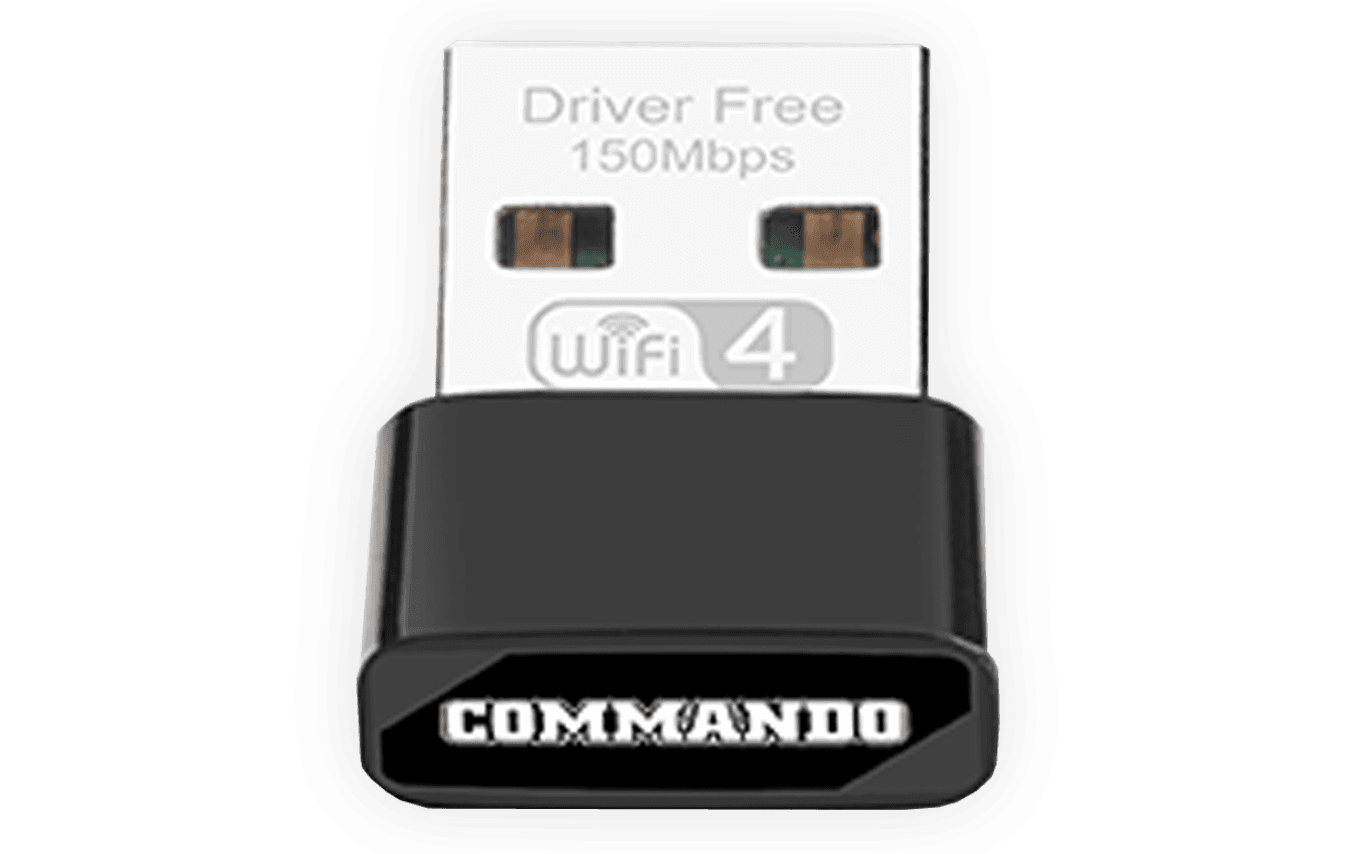

AIR-WA150
