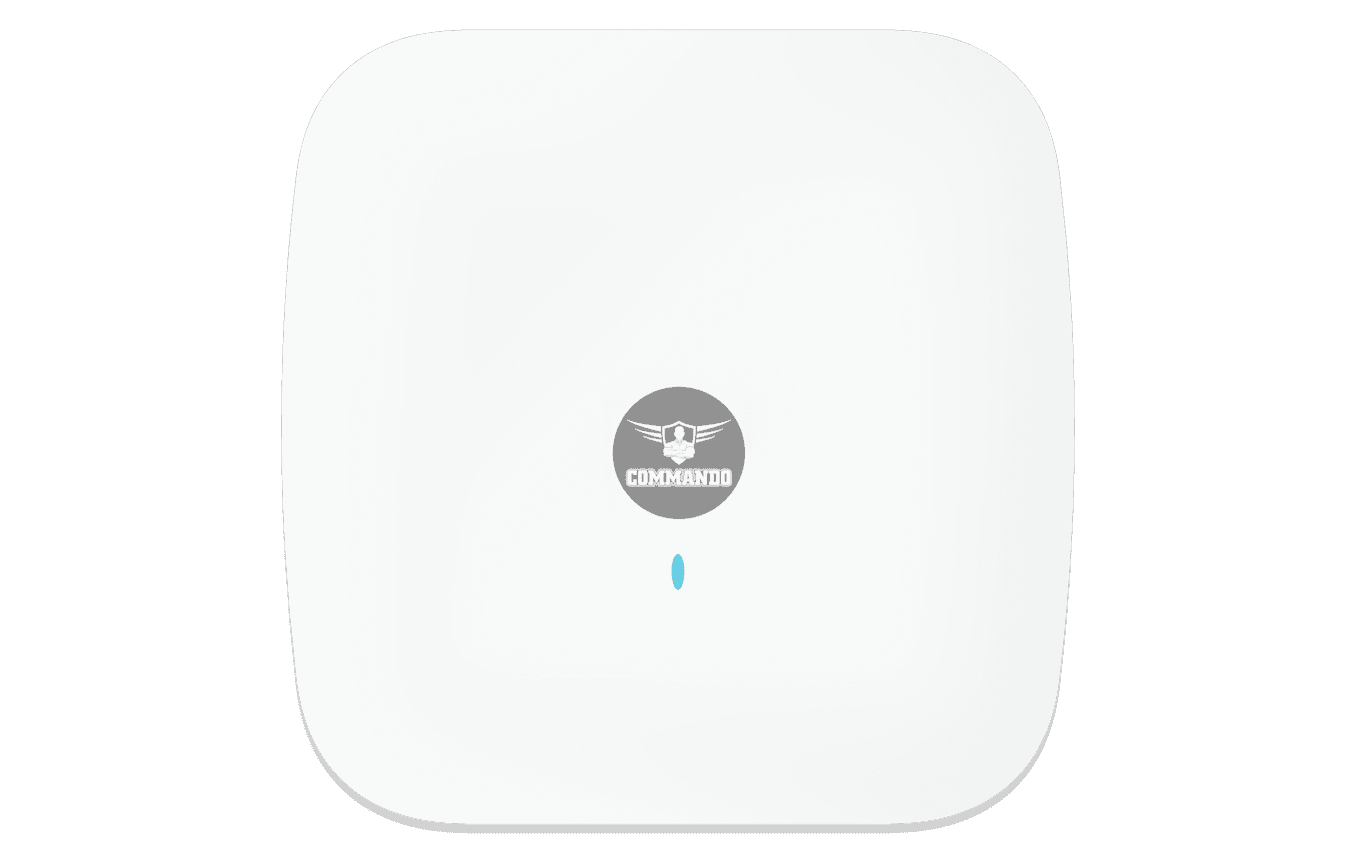

AIR-AP3000AX

COMMANDO AirX 2976Mbps, 802.11ax Wave 2, FIT/FAT, Cloud Wi-Fi 6 Access Point

Data Sheet Gallery YouTube

AIR-AP3000AX

COMMANDO AirX 2976Mbps, 802.11ax Wave 2, FIT/FAT, Cloud Wi-Fi 6 Access Point

Product Highlights

Supports wireless RF power adjustable as per user movements from AP with data rate up to 2976Mbps.
Access end users up to 80 max, with concurrent end users up to 80.
80MHz large bandwidth, 2x2 space flow.
Supports FIT/FAT mode of operation with COMMANDO RouteX Controllers.
Multi SSID up to 8 with inbuilt Wi-Fi channel analysis.
Supports IEEE 802.11ax/ac/b/g/n/a with backward compatibility for wireless clients, 2.4GHz+5GHz Wireless dual band.
With the function of the built-in firewall, IP filter, URL filter, and MAC filter.
Wireless dual band with radio RF Power up to 20dBm (2.4G max), 19dBm (5G max).
1G high-rate uplink network port with Link integrity check.
Management with the help of COMMANDO RouteX Controller as well as from Cloud portal.
Supports custom AP ON/OFF scheduling and scheduled reboot.
Supports independent setting of signal strength and channel.
Intelligent control of terminals based on airtime fairness.
High-density application optimization.
Supports band steering automatically moves to wider 5G band for faster connections, intelligent load balance based on users.
Supports tag VLAN and VLAN management.
Supports advance security by MAC ACL, Static DHCP, Flow control, URL Mapping, IP/MAC/URL filters, Port mapping and DMZ.
Supports Seamless Roaming, OFDMA, 1024-QAM.
Supports 5G priority access and fast roaming.
Supports SSID VLAN, divide VLAN for SSID.
Supports intelligent AC management, AP 1-Click upgrade, centralized management.
Supports custom AP open time period and scheduled restart.
Supports independent setting of signal strength and channel.
Supports wireless roaming, experience a better network on the move.
Dual purposes WAN or IEEE 802.3af/at Port (PoE/PoE+) port supporting 10/100/1000Mbps and dedicated LAN ports 1x 10/100/1000Mbps.
Supports Wi-Fi client distance 20 meters and more depending on surrounding conditions.
Dual input for power either PoE/PoE+ via WAN port or DC power inputs 12V, 1.5A.
Supports Open or encryption like WPA-PSK / WPA2-PSK /WPA-PSK+WPA2-PSK.
Complies with IEEE 802.3az standard.
Plug and Play design simplifies installation with self-adaption.
Compact, silent design perfect for noise sensitive environments.
With Zero Touch Provisioning: Plug and play and no setup. Affordable, Easy-to-Use AP for all sized business networks, with Zero Configuration Required.
Comes with one-year default warranty – optionally extendable up to 3 years.
