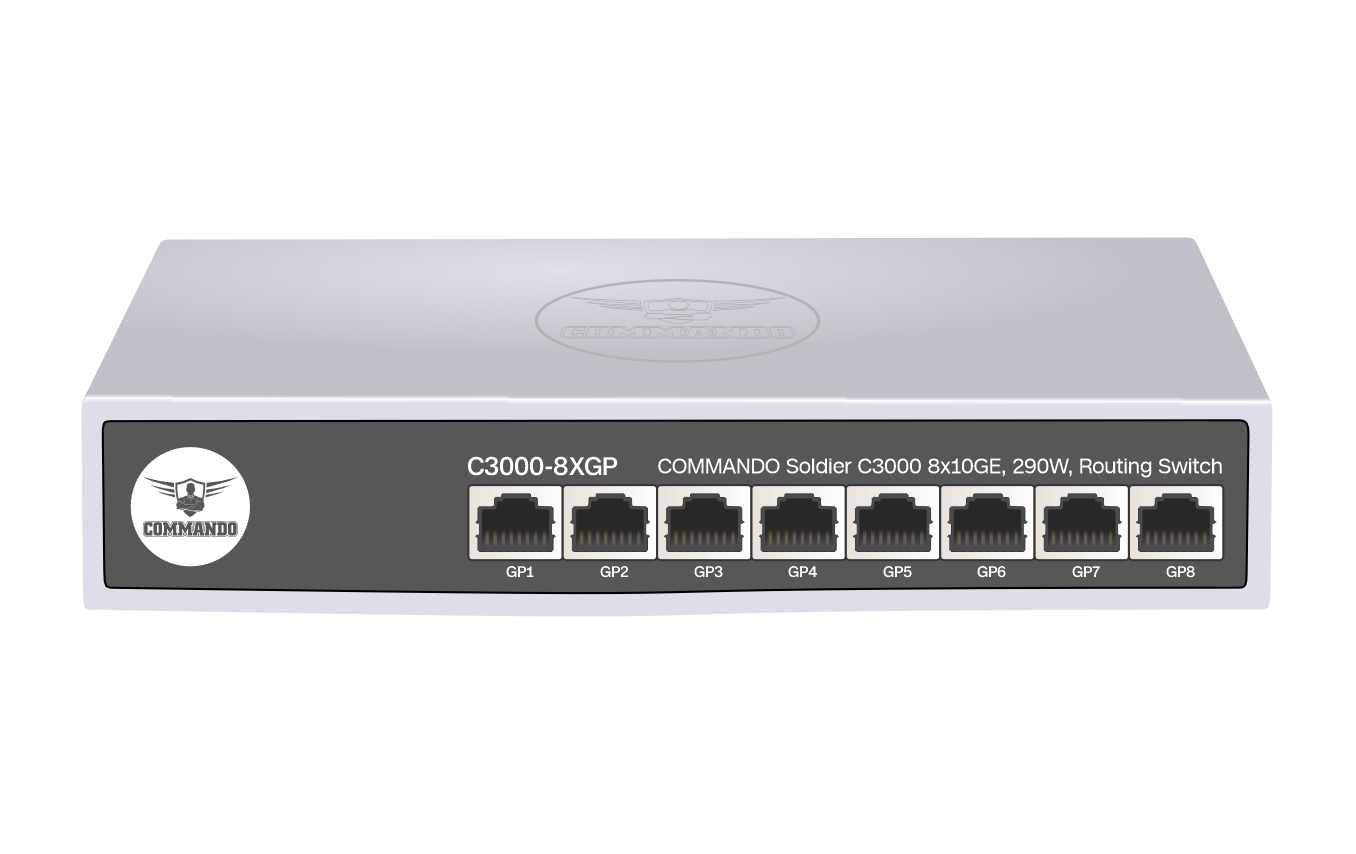

C3000-8XGP

COMMANDO Soldier C3000 8x10GE, 290W, Routing Switch

Data Sheet CLI Guide Config Guide Software Comparison YouTube Gallery

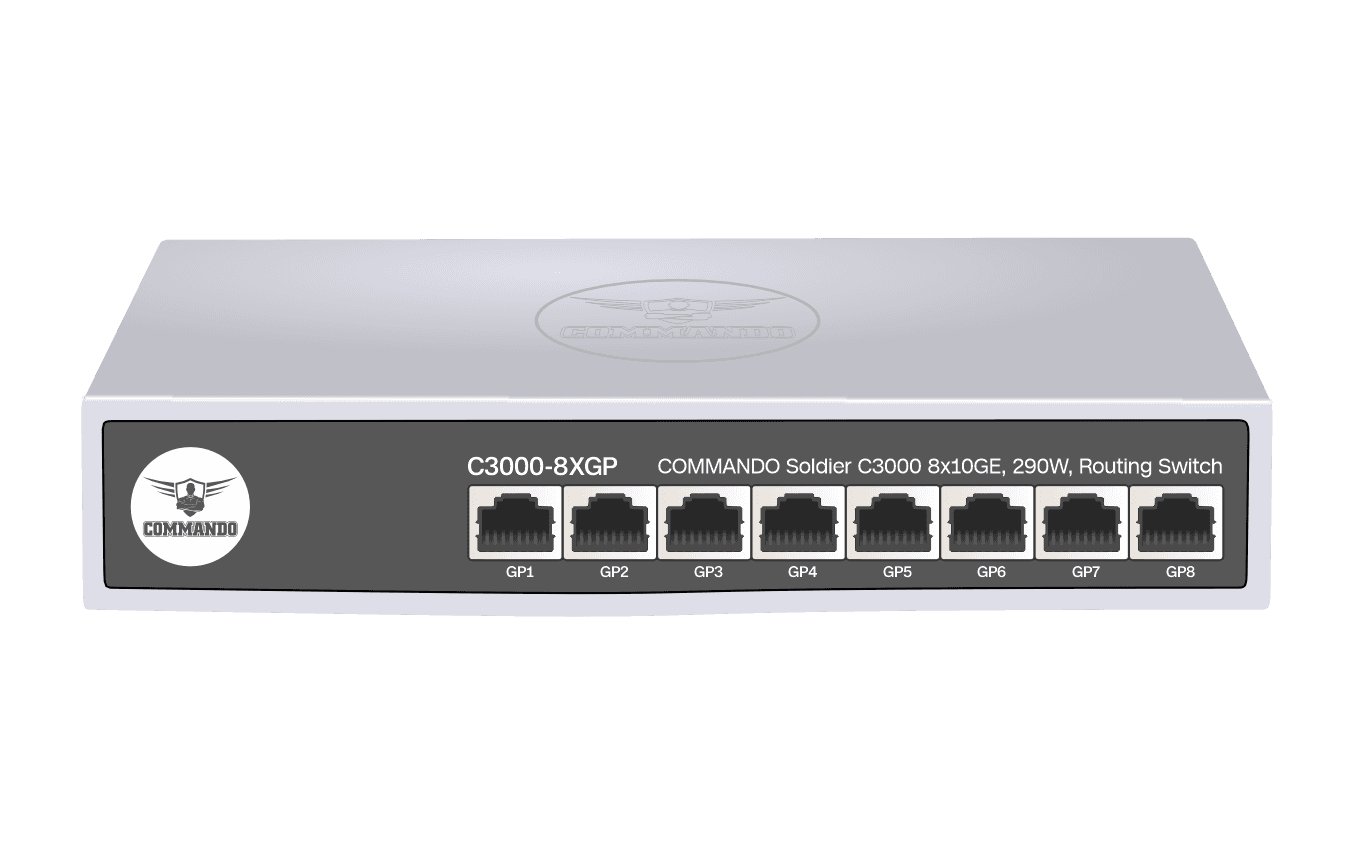

C3000-8XGP

COMMANDO Soldier C3000 8x10GE, 290W, Routing Switch

HARDWARE HIGHLIGHTS

8 x 10/100/1000/10000Mbps Ethernet PoE+ ports
1 x RJ45 Console port
1 x USB Type-C Console port
1 x USB 2.0 Storage port
8 x IEEE802.3af 15.4W PoE ports
8 x IEEE802.3at 30W PoE+ ports
Switching Capacity: 160 Gbps
Thunder Protection: ±6 KV
Power: 290W
2 Temperature Control Fans
Power Supply: Dual 1+1 Power Supplies (AC + DC)
AC: 100~240V 50/60Hz, DC: 48V, 6.1A
SoldierOS L3 IP Base Software Feature Set
L3+ 10G Ethernet Routing Switch
5 Year Extendable Warranty

SOFTWARE HIGHLIGHTS


L3 Features

Static Route
Dynamic Routing, RIPv1/v2, OSPF v1/v2
Policy-based Routing (PBR) for IPv4 and IPv6
VRRP
IGMP v1/v2/v3, IGMP Proxy
Static Multicast Route
Multicast Receive Control
Illegal Multicast Source Detect
ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit
Dynamic ARP Inspection (DAI)
DNS Server, Client, DNS Relay

IPv6 Features

ICMPv6, ND, DNSv6
MLD Snooping, IPv6 Multicast VLAN
MLDv1/v2, IPv6 ACL, IPv6 QoS

QoS

13 Queues
SP, WRR
Traffic Classification Based on 802.1p COS, ToS, DiffServ DSCP, ACL, port number
Traffic Policing
PRI Mark/Remark
Surveillance VLAN

ACL

IP ACL, MAC ACL, IP-MAC ACL
Standard and Expanded ACL Based on source/destination IP or MAC, IP Protocol,
TCP/UDP port, DSCP, ToS, IP Precedence), VLAN, Tag/Untag, CoS
REDIRECT and Accounting based ACL
Rules can be configured to port, VLAN, VLAN routing interfaces
Time Ranged ACL

Security

802.1x AAA
Port, MAC based authentication
Accounting based on time length and traffic
Guest VLAN and auto VLAN
RADIUS for IPv4 and IPv6
TACACS+ for IPv4 and IPv6

DHCPv4/v6 Traffic Monitor

DHCP Server/Client for IPv4/IPv6
DHCP Relay/Option 82
DHCP Snooping/Option 82

Tunneling

L3 GRE
6 to 4
ISATAP
IP-in-IP
Configured Tunnel

L1, L2 Features

IEEE802.3(10Base-T)
IEEE802.3u(100Base-TX)
IEEE802.3z(1000BASE-X)
IEEE802.3ab(1000Base-T)
IEEE802.3ae(10GBase), IEEE802.3x
IEEE802.3an (10GBASE-T)
Port loopback detection
LLDP and LLDP-MED
UDLD
802.3ad LACP, 26 Trunk group with max 8 ports
LACP load balance
N:1 Port Mirroring
RSPAN
ERSPAN
IEEEE802.1d(STP)
IEEEE802.1w(RSTP)
IEEEE802.1s(MSTP)
Root Guard
BPDU Guard
BPDU Tunnel
IP Source Guard
802.1Q, 4K VLAN
MAC VLAN, Voice VLAN, Protocol VLAN, Multicast VLAN
QinQ, Selective QinQ, Flexible QinQ
GVRP
N:1 VLAN Translation
Broadcast / Multicast / Unicast Storm Control
IGMP v1/v2/v3 Snooping and L2 Query
ND Snooping
MLDv1/v2 Snooping
Port Security
Flow Control: HOL, IEEE802.3x
Bandwidth Control

Traffic Monitor

sFlow Traffic Analysis

Security Network Management

CLI, WEB, Telnet, SNMPv1/v2c/v3 through IPv4 and IPv6
Syslog and external Syslog Server HTTP SSL
SNMP MIB, SNMP TRAP
FTP/TFTP
SNTP/NTP
RMON 1,2,3,9
Authentication by Radius/TACACS
SSH v1/v2
Dual firmware images/ Configuration files

GREEN Features

IEEE 802.3az (Energy Efficient Ethernet)
Auto FAN Speed Control, Temperature Alarm
LED Shut-Off

MIB (Management Information Base) counters

TCP/IP-based MIB-II (RFC 1213)
Ethernet-like MIB (RFC 3635)
Interface Group MIB (RFC 2863)
RMON (Remote Network Monitoring) MIB (RFC 2819)
Bridge MIB (RFC 1493)
Bridge MIB Extension (RFC 2674)
