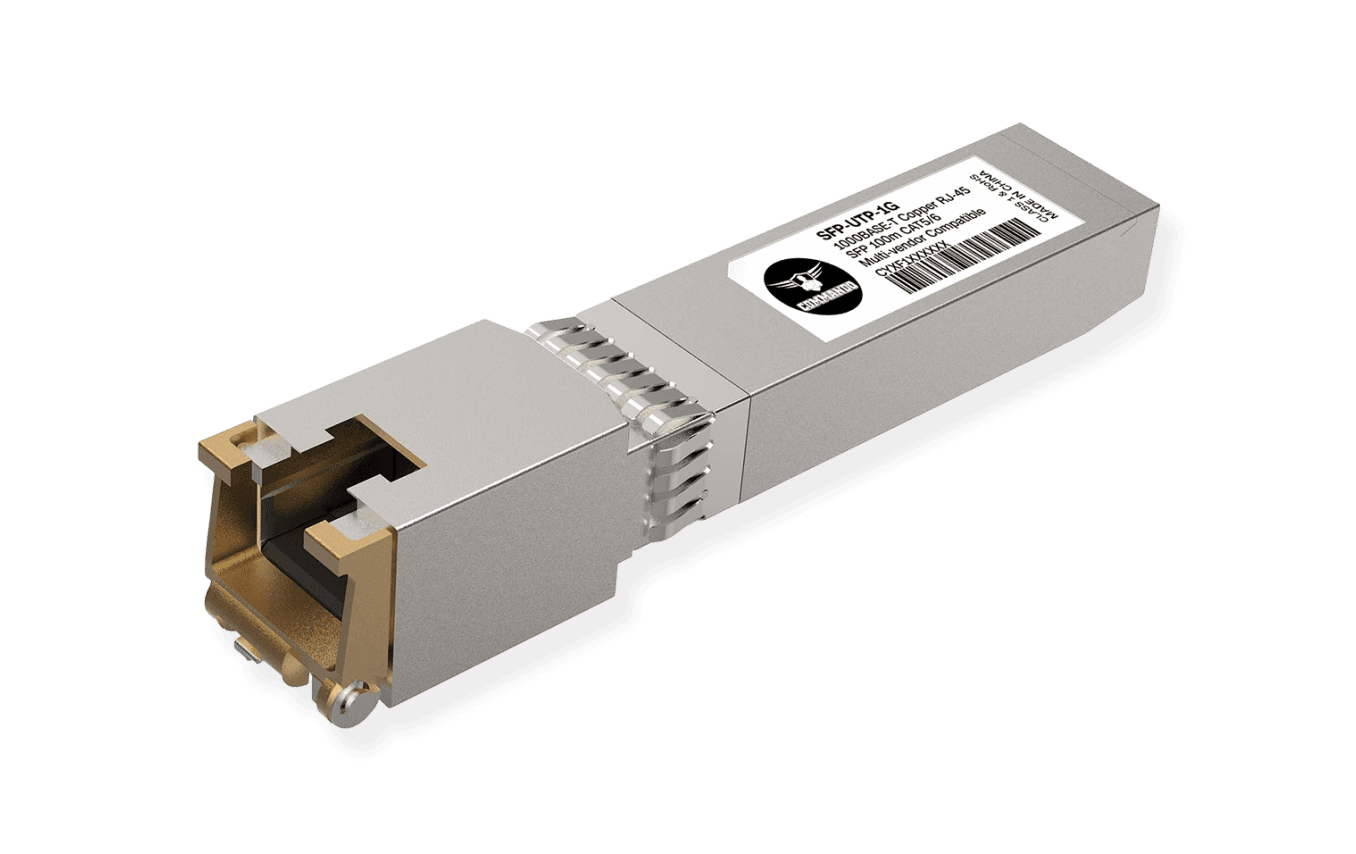

SFP-UTP-1G

Specifications:

• Multi-vendor platform compatible
• Supports up to 1.25Gbps bi-directional data links
• Data transmission distance up to 100m
• Hot-pluggable SFP to maximize uptime and simplify serviceability
• Compliant with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab
• Support 10/100/1000BASE-T operation in host systems with SGMII interface
• Auto-sense MDI/MDIX
• RJ45 Connector
• Built-in Digital Diagnostic Monitoring (DDM) functions
• Single power supply 3.3V and TTL Logic Interface
• Standard and compact size, fully metallic enclosure for Low EMIF
• Low Power Dissipation (1.05W Typical)
• Compliant with SFP MSA
• RoHS Compliant
• Operating temperature range: 0℃ to 70℃
• Applications: 1.25 Gigabit Ethernet
• 3-Year Warranty
