AIR-WB5G-10K-HG

COMMANDO AirNET 10KM, 867Mbps, 5GHz, 802.11ac, 2x16dBi High Gain Ant, 25dBm, 1GE, Wireless Bridge

Data Sheet Gallery YouTube

AIR-WB5G-10K-HG

COMMANDO AirNET 10KM, 867Mbps, 5GHz, 802.11ac, 2x16dBi High Gain Ant, 25dBm, 1GE, Wireless Bridge

Product Highlights

• Support AP as well as Station mode.

• Supports IEEE 802.11ac 5GHz Wireless bands.

• Dual input for power either POE IN or DC power inputs as per models.

• IEEE 802.1q Tag based VLAN

• Support Enterprise security: WPA, WPA2, 802.1x RADIUS

• Supports IEEE 802.11ac 5GHz Wireless with inbuilt 27/25/23/20dBi gain Antenna panel antenna.

• Support wireless RF power adjustable as per user movements from bridge.

• Supports intelligent load balance based on users.

• Support seamless roaming and low-rate terminal access.

• Dual purposes WAN or LAN port supporting 1x 10/100/1000Mbps.

• Supports Wi-Fi client distance up to 10KM depending on surrounding conditions.

• Support Open or encryption

• Plug and Play design simplifies installation with self-adaption.

• Compact IP65 casing comes with ABS waterproof, dust proof and sunscreen shell which avoid the damage from dust & rainy weather. Meantime, it is adaptive to various environment.

• Silent design perfect for noise sensitive environments.

• With Zero Touch Provisioning: Plug and play and no setup. Affordable, Easy-to-Use AP for Small Business Networks, with Zero Configuration Required.

• Built-in High-Performance Processor with long life, Suitable for Deployment of large scale Commercial Scenarios

• Comes with one-year default warranty – optionally extendable up to 3 years.

Software Highlights

Guide

Guide Wizard helps for Fast Setup to Finish config in several steps

Status

• Overview: shows Status of System/Model/MAC/Uptime/Load Average/ Memory (Total Available, Free, Buffered) /Active Connections/ Associated Stations

• Real time Graphs: Load, Traffic, Wireless, Connections

Network

LAN, Wi-Fi Basic, Wi-Fi Advanced (For setting Super channels), Diagnostics, Autotxpower, Network, Watchdog

System

Password, Upgrade/Reset, Auto-reboot, Reboot

Logout

User Logout from Web access.

https://www.commandonetworks.com//AIR-WB5G-10K-HG

COMMANDO Networks - 0 / 0

How to Install and Configure Wireless Bridge - COMMANDO AirONE AIR-WB-1K / AIR-CPE1K+, 802.11n

03 Feb 2023

How to Install and Configure Wireless Bridge - COMMANDO AirONE AIR-WB5G-10K / AIR-CPE10K+, 900Mbps

03 Feb 2023

How to Install and Configure Wireless Bridge - COMMANDO AirONE AIR-CPE10K+ / AIR-WB5G-10K, 900Mbps

01 Feb 2023

How to Install and Configure Ceiling Wireless Access Point - COMMANDO AirONE AIR-AP750 750M 802.11ac

01 Feb 2023

How to Install and Configure Cloud Wireless Access Point - COMMANDO AirPRO AIR-AP1200-PRO Dual Radio

24 Jan 2023

How to Install and Configure Ceiling Wireless Access Point - COMMANDO AirONE AIR-AP300, 802.11n

23 Jan 2023

How to Install and Configure Wi-Fi 6 Wireless Access Point - COMMANDO AirONE AIR-AP1800AX 1800Mbps

16 Jan 2023

Data Sheet

Gallery

YouTube

Click on image to expanded

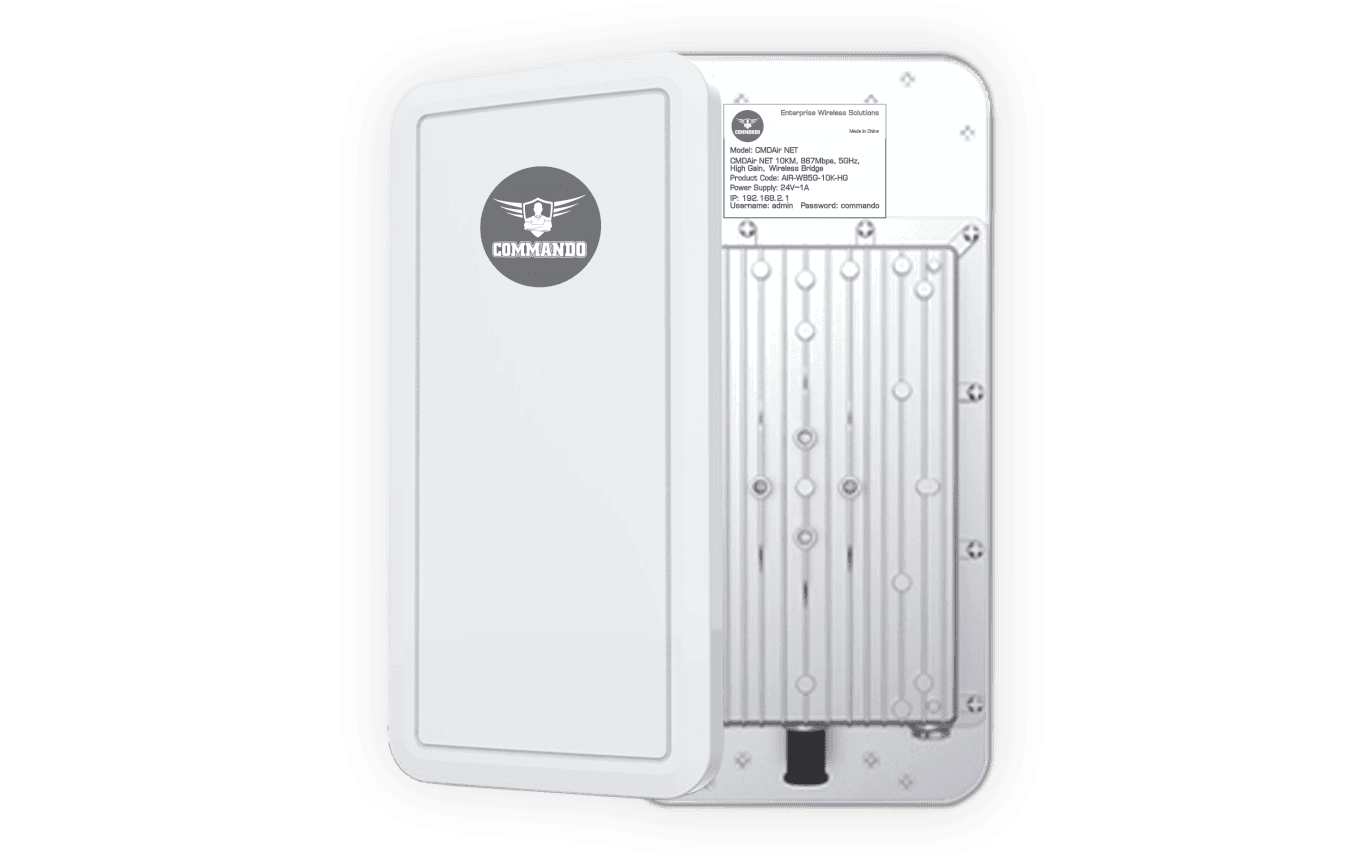

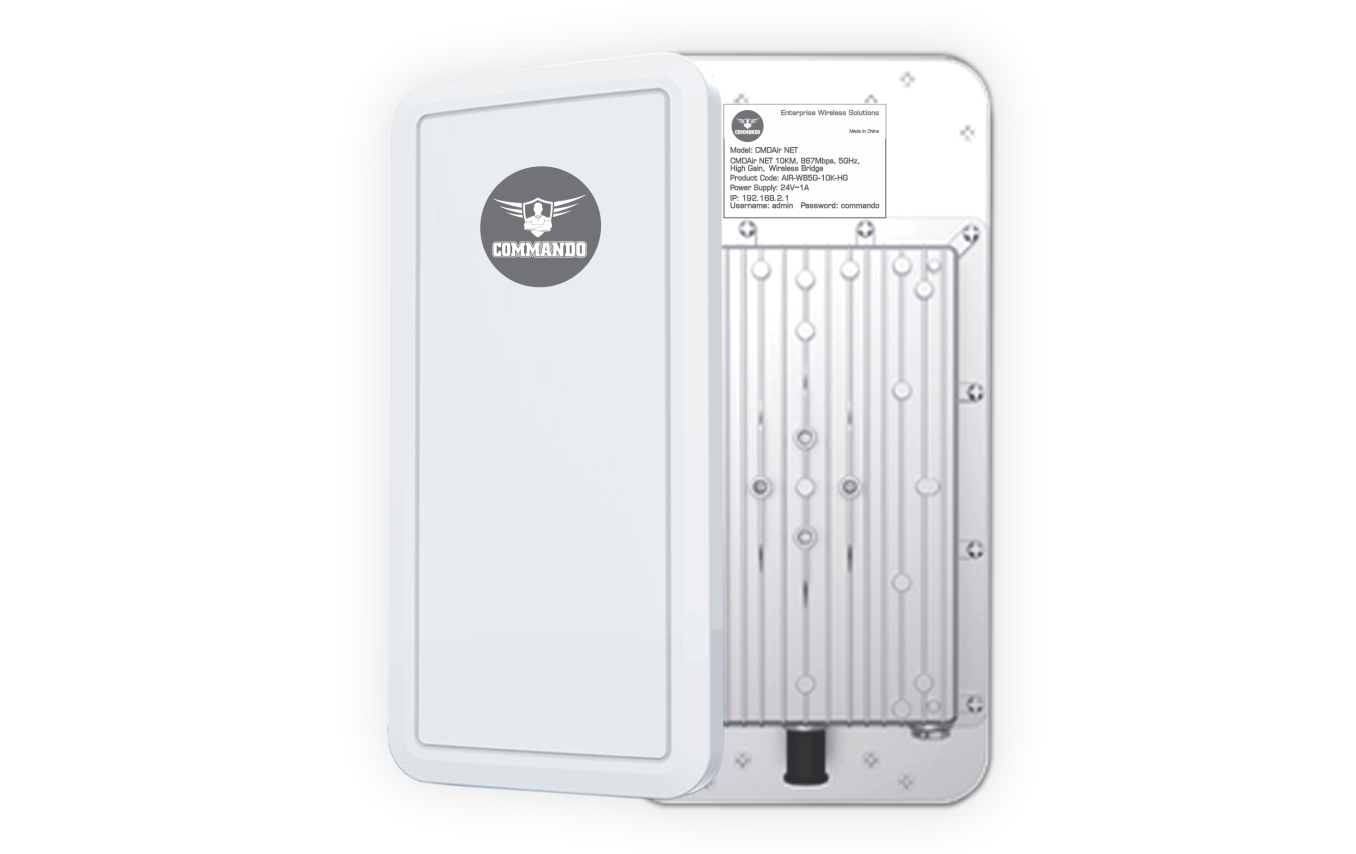

AIR-WB5G-10K-HG

COMMANDO AirNET 10KM, 867Mbps, 5GHz, 802.11ac, 2x16dBi High Gain Ant, 25dBm, 1GE, Wireless Bridge

COMMANDO AirNET Wireless Bridge Series, 5GHz, 802.11ac, 900Mbps, 2 MIMO High Gain 16dBi Internal Directional Antennas, 2T2R, Wireless Power 300mW / 24.77dBm, Multi SSID up to 4, Support Beamforming Technology, 16MB Flash, 128M DDR2 RAM, Support 24V Passive PoE

Price & Availability:

{"highlights":"<div><span>\u2022<\/span> Support AP as well as Station mode.<\/div>\r\n<div><span>\u2022<\/span> Supports IEEE 802.11ac 5GHz Wireless bands.<\/div>\r\n<div><span>\u2022<\/span> Dual input for power either POE IN or DC power inputs as per models.<\/div>\r\n<div><span>\u2022<\/span> IEEE 802.1q Tag based VLAN<\/div>\r\n<div><span>\u2022<\/span> Support Enterprise security: WPA, WPA2, 802.1x RADIUS<\/div>\r\n<div><span>\u2022<\/span> Supports IEEE 802.11ac 5GHz Wireless with inbuilt 27\/25\/23\/20dBi gain Antenna panel antenna.<\/div>\r\n<div><span>\u2022<\/span> Support wireless RF power adjustable as per user movements from bridge.<\/div>\r\n<div><span>\u2022<\/span> Supports intelligent load balance based on users.<\/div>\r\n<div><span>\u2022<\/span> Support seamless roaming and low-rate terminal access.<\/div>\r\n<div><span>\u2022<\/span> Dual purposes WAN or LAN port supporting 1x 10\/100\/1000Mbps.<\/div>\r\n<div><span>\u2022<\/span> Supports Wi-Fi client distance up to 10KM depending on surrounding conditions.<\/div>\r\n<div><span>\u2022<\/span> Support Open or encryption<\/div>\r\n<div><span>\u2022<\/span> Plug and Play design simplifies installation with self-adaption.<\/div>\r\n<div><span>\u2022<\/span> Compact IP65 casing comes with ABS waterproof, dust proof and sunscreen shell which avoid the damage from dust & rainy weather. Meantime, it is adaptive to various environment.<\/div>\r\n<div><span>\u2022<\/span> Silent design perfect for noise sensitive environments.<\/div>\r\n<div><span>\u2022<\/span> With Zero Touch Provisioning: Plug and play and no setup. Affordable, Easy-to-Use AP for Small Business Networks, with Zero Configuration Required.<\/div>\r\n<div><span>\u2022<\/span> Built-in High-Performance Processor with long life, Suitable for Deployment of large scale Commercial Scenarios<\/div>\r\n<div><span>\u2022<\/span> Comes with one-year default warranty \u2013 optionally extendable up to 3 years.<\/div>","sub_category":"Wireless Bridge","one_line_des":"COMMANDO AirNET 10KM, 867Mbps, 5GHz, 802.11ac, 2x16dBi High Gain Ant, 25dBm, 1GE, Wireless Bridge","part_code":"AIR-WB5G-10K-HG"}

Product Highlights : View Details

Hardware
Wireless	802.11ac/a/n, 5GHz, 900Mbps, MIMO Technology
Interface	1 * 10/100/1000Mbps WAN/LAN Port 1Reset Button for restore factory default settings 1WDS Switch button to do PTP/PTMP connection
Antenna	16dBi High Gain Directional Antennas
Power consumption	24V PoE Power
Size	315mm145mm80mm
Transmission Data Rate	900Mbps
Software Features
Communication Standard	IEEE 802.11ac
Communication Standard Wireless Setting	IEEE 802.11n IEEE 802.11a Intelligent Channel Analysis
Wireless Setting Wireless Security	Distance Controll 802.1x ACK Time Output Virtual SSID up to 4 BSSID WEP Encryption-64/128/152 bit
Wireless Security System Setting	WPA/WPA2 Personal Encryption (WPA-PSK using TKIP or AES) WPA/WPA2 Enterprise Encryption (WPA-EAP using TKIP) High SSID Web-based configuration (HTTP/Telnet)
Firmware Upgrade	Upgrade firmware via web browser or TFTP
Administration Management	Admin User name/Password can be configured
System Monitoring	Device and Networking status statistic
Log	Support local log, host log, log file exporting
Reset	Reset to factory defaults
Backup	Backup device configuration, then restore this configuration if need
