AIR-WB-5K

COMMANDO AirNET 5KM, 300Mbps, 2.4GHz, 802.11n, 2x12dBi Ant, 27dBm, Wireless Bridge

Data Sheet Gallery YouTube

AIR-WB-5K

COMMANDO AirNET 5KM, 300Mbps, 2.4GHz, 802.11n, 2x12dBi Ant, 27dBm, Wireless Bridge

Product Highlights

• Support AP as well as Station mode.

• Supports IEEE 802.11ac 5GHz Wireless bands.

• Dual input for power either POE IN or DC power inputs as per models.

• IEEE 802.1q Tag based VLAN

• Support Enterprise security: WPA, WPA2, 802.1x RADIUS

• Supports IEEE 802.11ac 5GHz Wireless with inbuilt 27/25/23/20dBi gain Antenna panel antenna.

• Support wireless RF power adjustable as per user movements from bridge.

• Supports intelligent load balance based on users.

• Support seamless roaming and low-rate terminal access.

• Dual purposes WAN or LAN port supporting 1x 10/100/1000Mbps.

• Supports Wi-Fi client distance up to 10KM depending on surrounding conditions.

• Support Open or encryption

• Plug and Play design simplifies installation with self-adaption.

• Compact IP65 casing comes with ABS waterproof, dust proof and sunscreen shell which avoid the damage from dust & rainy weather. Meantime, it is adaptive to various environment.

• Silent design perfect for noise sensitive environments.

• With Zero Touch Provisioning: Plug and play and no setup. Affordable, Easy-to-Use AP for Small Business Networks, with Zero Configuration Required.

• Built-in High-Performance Processor with long life, Suitable for Deployment of large scale Commercial Scenarios

• Comes with one-year default warranty – optionally extendable up to 3 years.

Software Highlights

Guide

Guide Wizard helps for Fast Setup to Finish config in several steps

Status

• Overview: shows Status of System/Model/MAC/Uptime/Load Average/ Memory (Total Available, Free, Buffered) /Active Connections/ Associated Stations

• Real time Graphs: Load, Traffic, Wireless, Connections

Network

LAN, Wi-Fi Basic, Wi-Fi Advanced (For setting Super channels), Diagnostics, Autotxpower, Network, Watchdog

System

Password, Upgrade/Reset, Auto-reboot, Reboot

Logout

User Logout from Web access.

https://www.commandonetworks.com//AIR-WB-5K

COMMANDO Networks - 0 / 0

How to Install and Configure Wireless Bridge - COMMANDO AirONE AIR-WB-1K / AIR-CPE1K+, 802.11n

03 Feb 2023

How to Install and Configure Wireless Bridge - COMMANDO AirONE AIR-WB5G-10K / AIR-CPE10K+, 900Mbps

03 Feb 2023

How to Install and Configure Wireless Bridge - COMMANDO AirONE AIR-CPE10K+ / AIR-WB5G-10K, 900Mbps

01 Feb 2023

How to Install and Configure Ceiling Wireless Access Point - COMMANDO AirONE AIR-AP750 750M 802.11ac

01 Feb 2023

How to Install and Configure Cloud Wireless Access Point - COMMANDO AirPRO AIR-AP1200-PRO Dual Radio

24 Jan 2023

How to Install and Configure Ceiling Wireless Access Point - COMMANDO AirONE AIR-AP300, 802.11n

23 Jan 2023

How to Install and Configure Wi-Fi 6 Wireless Access Point - COMMANDO AirONE AIR-AP1800AX 1800Mbps

16 Jan 2023

Data Sheet

Gallery

YouTube

Click on image to expanded

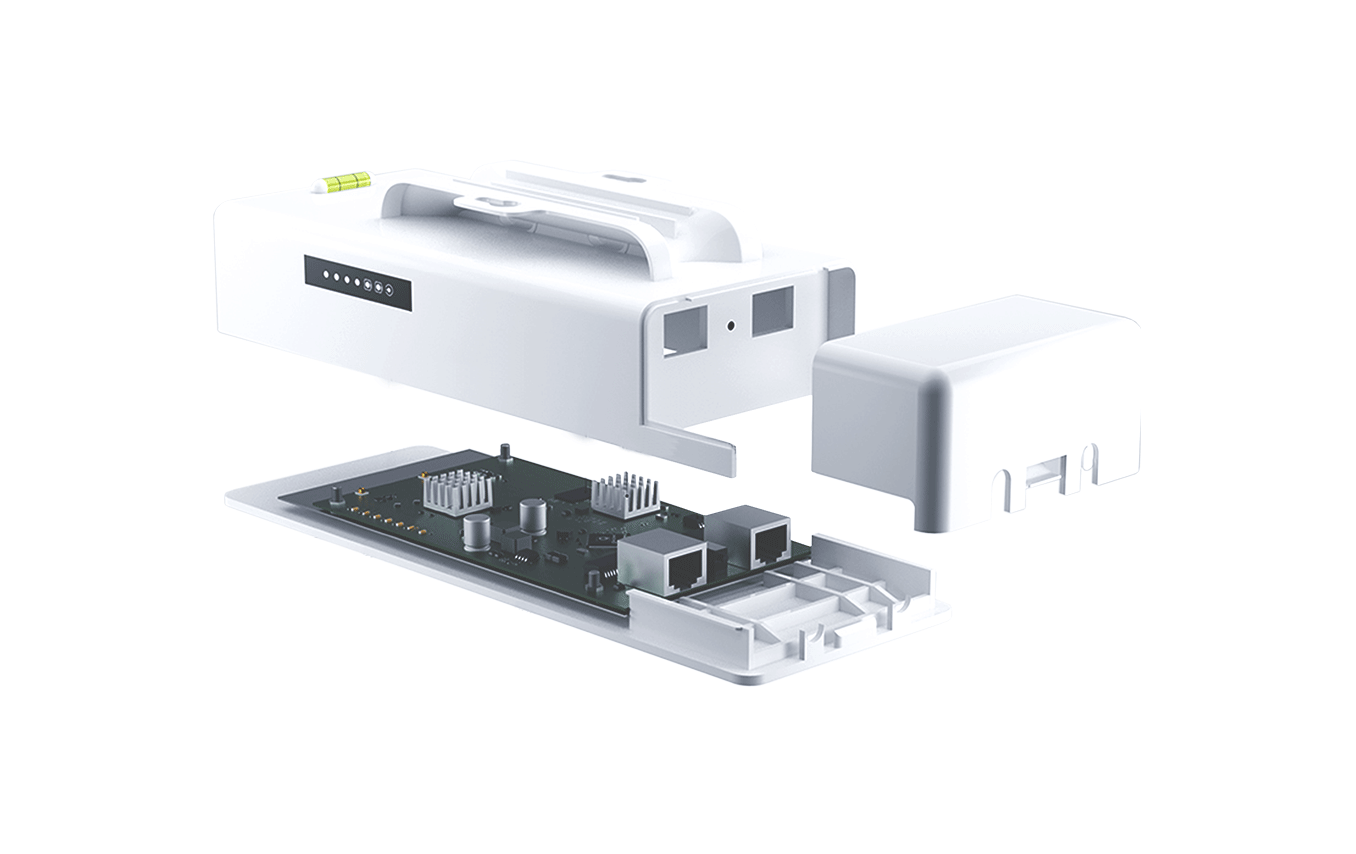

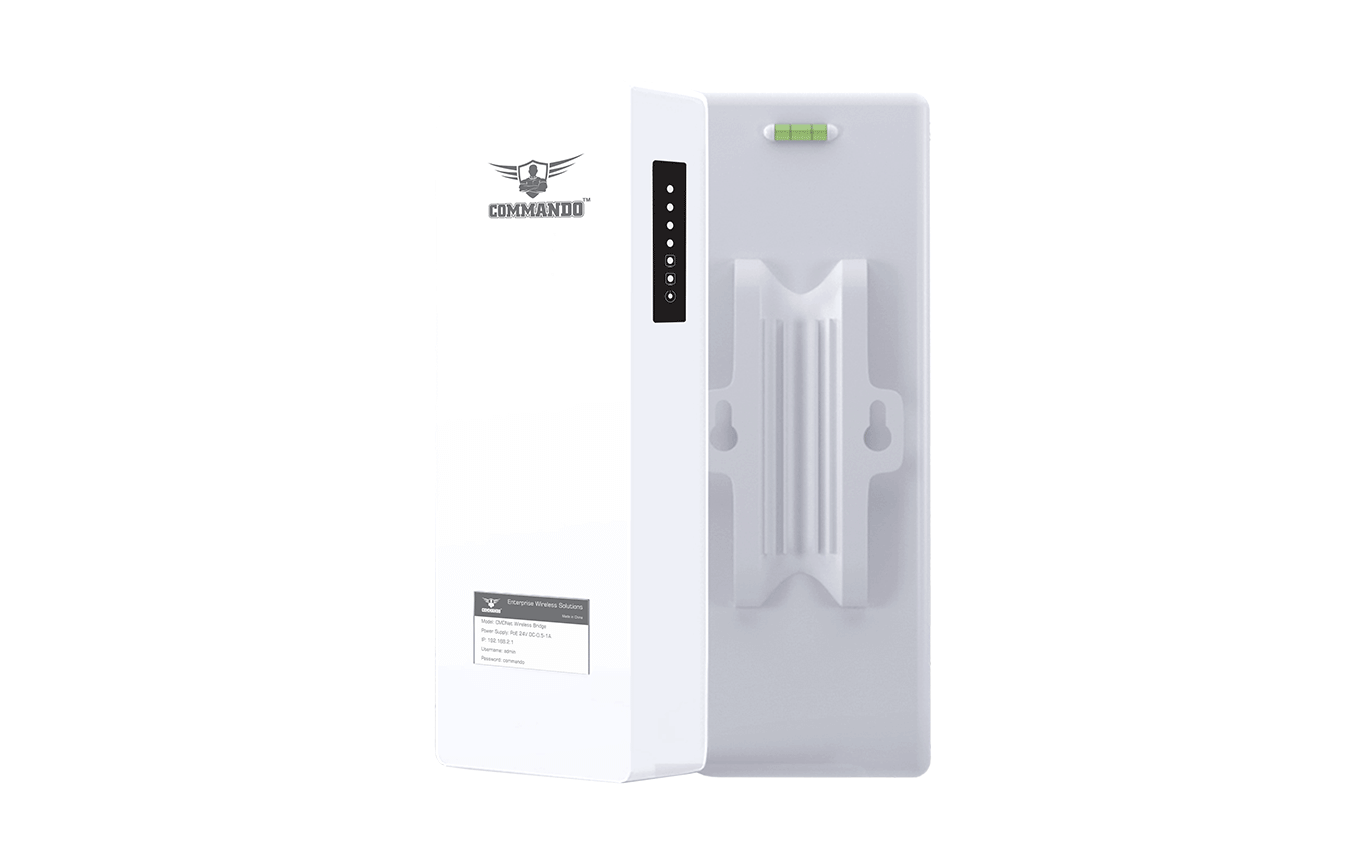

AIR-WB-5K

COMMANDO AirNET 5KM, 300Mbps, 2.4GHz, 802.11n, 2x12dBi Ant, 27dBm, Wireless Bridge

COMMANDO AirNET Wireless Bridge Series, 2.4GHz, 802.11n, 300Mbps, 12dBi Internal Directional Antennas, 2T2R, Wireless Power 500mW/27dBm, Multi SSID up to 4, Support Beamforming Technology, 8MB Flash, 64MB DDR2 RAM, Support 24V Passive PoE

Price & Availability:

{"highlights":"<div><span>\u2022<\/span> Support AP as well as Station mode.<\/div>\r\n<div><span>\u2022<\/span> Supports IEEE 802.11ac 5GHz Wireless bands.<\/div>\r\n<div><span>\u2022<\/span> Dual input for power either POE IN or DC power inputs as per models.<\/div>\r\n<div><span>\u2022<\/span> IEEE 802.1q Tag based VLAN<\/div>\r\n<div><span>\u2022<\/span> Support Enterprise security: WPA, WPA2, 802.1x RADIUS<\/div>\r\n<div><span>\u2022<\/span> Supports IEEE 802.11ac 5GHz Wireless with inbuilt 27\/25\/23\/20dBi gain Antenna panel antenna.<\/div>\r\n<div><span>\u2022<\/span> Support wireless RF power adjustable as per user movements from bridge.<\/div>\r\n<div><span>\u2022<\/span> Supports intelligent load balance based on users.<\/div>\r\n<div><span>\u2022<\/span> Support seamless roaming and low-rate terminal access.<\/div>\r\n<div><span>\u2022<\/span> Dual purposes WAN or LAN port supporting 1x 10\/100\/1000Mbps.<\/div>\r\n<div><span>\u2022<\/span> Supports Wi-Fi client distance up to 10KM depending on surrounding conditions.<\/div>\r\n<div><span>\u2022<\/span> Support Open or encryption<\/div>\r\n<div><span>\u2022<\/span> Plug and Play design simplifies installation with self-adaption.<\/div>\r\n<div><span>\u2022<\/span> Compact IP65 casing comes with ABS waterproof, dust proof and sunscreen shell which avoid the damage from dust & rainy weather. Meantime, it is adaptive to various environment.<\/div>\r\n<div><span>\u2022<\/span> Silent design perfect for noise sensitive environments.<\/div>\r\n<div><span>\u2022<\/span> With Zero Touch Provisioning: Plug and play and no setup. Affordable, Easy-to-Use AP for Small Business Networks, with Zero Configuration Required.<\/div>\r\n<div><span>\u2022<\/span> Built-in High-Performance Processor with long life, Suitable for Deployment of large scale Commercial Scenarios<\/div>\r\n<div><span>\u2022<\/span> Comes with one-year default warranty \u2013 optionally extendable up to 3 years.<\/div>","sub_category":"Wireless Bridge","one_line_des":"COMMANDO AirNET 5KM, 300Mbps, 2.4GHz, 802.11n, 2x12dBi Ant, 27dBm, Wireless Bridge","part_code":"AIR-WB-5K"}

Product Highlights : View Details


Standard	802.11n, MIMO technology
Memory	64MB DDR2 RAM
Flash	8MB
Interface	1 * 10/100Mbps WAN/LAN Port 1 * Reset button, press 15 seconds to revert to default setting
Antenna	Build in 12dBi MIMO Panel Antenna
Power consumption	24V PoE, <8W
Size	260mm * 85 mm * 45mm
RF Data
Frequency	2.4GHz: 802.11n
Throughput	300Mbps
Modulation	OFDM = BPSK,QPSK, 16-QAM, 64-QAM DSSS = DBPSK, DQPSK, CCK
Country code	FCC,IC,ETSI,MKK,MKK1,MKK2,MKK3,NCC,RUSSIAN,CN
Receive Sensitivity & RF Power
RF Power	02.11n HT20: MCS7 23±2DB, MCS0 26±2DB 802.11n HT40: MCS7 22±2DB, MCS0 25±2DB
Receive Sensitivity	802.11n HT20: -70dbm@MCS7, -90dbm@MCS0 802.11n HT20: -70dbm@MCS7, -90dbm@MCS0 802.11ac HT80: -60dbm@MCS9, -86dbm@MCS0
EVM	802.11n: <=-28 DB 802.11a: <=-25 DB
Firmware Features
Operation mode	Wireless AP, Gateway, WISP, WiFi Repeater, WDS
WAN Type	Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)
Wireless Security	64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
SSID	Multiple SSID up to 4
Protocols	IPv4
Others
Package Contents	300Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
Environment	Operating Temperature: -40°C~55°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Management	Firmware GUI , Remote Management, WLAN Controller, Cloud Management System
