AIR-APO1200-V1

COMMANDO AirONE 1200Mbps, 2.4GHz+5GHz 802.11ac, Multi-Mode, Outdoor Access Point

Data Sheet Config Guide Gallery YouTube

AIR-APO1200-V1

COMMANDO AirONE 1200Mbps, 2.4GHz+5GHz 802.11ac, Multi-Mode, Outdoor Access Point

Product Highlights

• Multiple Operational Modes like Gateway, Repeater, WISP, AP. All COMMANDO AirONE series Outdoor APO default mode is AP mode.

• Supports Multi SSID up to 8 with inbuilt WIFI channel analysis.

• Supports IEEE 802.11ac/b/g/n, 2.4GHz+5.8GHz Wave 2.0 Technology, MIMO High Gain Omni 5dBi Internal Antenna with RF input Power up to 500mW.

• Support wireless RF power adjustable as per user movements from APO.

• Wireless clients up to 128 max, with concurrent end users up to 100.

• Support tag VLAN and VLAN management.

• Supports intelligent load balance based on users.

• Support seamless roaming and low-rate terminal access.

• Dual purposes WAN or IEEE 802.3at 48V PoE+ supporting 1x 10/100/100Mbps and separate LAN ports 1x 10/100/1000Mbps.

• Supports Wi-Fi client distance around 120 meters radius depending on surrounding conditions.

• Dual input for power either IEEE 802.3at 48V POE+ or 12V, 1.5A DC power inputs.

• Support Open or encryption like WPA/WPA2PSK_TKIPAES

• Plug and Play design with self-adaption with Zero Touch Provisioning.

• Compact IP65 casing, silent design perfect for noise sensitive environments.

• Affordable, Easy-to-Use AP for Small Business Networks, with Zero Configuration Required.

• Built-in High-Performance Processor with long life, Suitable for Deployment of Large Scale Commercial Scenarios

• Comes with one-year default warranty – optionally extendable up to 3 years.

Software Highlights

Home

Device Information like CPU Usage, Memory Usage, LAN Information like IP Mode Get IP From AC/Gateway/Static, Status with 2G/5G Wi-Fi Clients Status with information like SSID, Channel, Bandwidth, Encrypt, MAC Address, Operation Mode configure like AP/ Fat AP Mode with Uptime, Flow in bps for Downstream and Upstream.

Wizard

Gateway Mode, Repeater Mode, WISP Mode, AP Mode (Default Selection).

Wi-Fi

2G/5G Wi-Fi Status ON/OFF, SSID, Hide your SSID, Bandwidth, Channel, Encryption Open/Encryption with WPA/WPA2PSK_TKIPAES, MAC ACL with Add, Delete, Apply with disable/Allow/ Prohibit option, Wi-Fi Timer Off/ON with Time Frame, Advanced setting like Country Region, 2G/5G, Multicast Fast, Maximum client for APO, WLAN Partition, Short GI, Coverage Threshold(-95dBm~-65dBm), TX Power, DFS.

Network

LAN Settings with DHCP server option, Static DHCP, VLAN Settings & Cloud Server Settings.

Security

URL Filter, IP Filter, MAC Filter & DMZ Settings.

Manage

Configure, Reboot, Modify Password, Upgrade, Time, Log, Flow Control, IP Group, Time Group & DDNS Settings.

https://www.commandonetworks.com//AIR-APO1200-V1

COMMANDO Networks - 0 / 0

AIR-WB900-10K --COMMANDO AirX 900M 5.8GHz 17dBi MU-MIMO 802.11ac Wave2 P2P/P2MP 10KM Wireless Bridge

01 Mar 2025

AIR-WB900-5K -- COMMANDO AirX 900Mbps 5.8GHz 14dBi 802.11ac P2P/P2MP, 5KM Enterprise Wireless Bridge

01 Mar 2025

AIR-WB450-3K -- COMMANDO AirX 450Mbps 5.8GHz 12dBi 802.11ac P2P/P2MP, 3KM Enterprise Wireless Bridge

01 Mar 2025

AIR-WB450-1K -- COMMANDO AirX 450Mbps, 5.8GHz 8dBi 802.11ac P2P/P2MP, 1KM Enterprise Wireless Bridge

01 Mar 2025

How to Install and Configure Wireless Bridge - COMMANDO AirONE AIR-WB-1K / AIR-CPE1K+, 802.11n

03 Feb 2023

How to Install and Configure Wireless Bridge - COMMANDO AirONE AIR-WB5G-10K / AIR-CPE10K+, 900Mbps

03 Feb 2023

How to Install and Configure Wireless Bridge - COMMANDO AirONE AIR-CPE10K+ / AIR-WB5G-10K, 900Mbps

01 Feb 2023

How to Install and Configure Ceiling Wireless Access Point - COMMANDO AirONE AIR-AP750 750M 802.11ac

01 Feb 2023

How to Install and Configure Cloud Wireless Access Point - COMMANDO AirPRO AIR-AP1200-PRO Dual Radio

24 Jan 2023

How to Install and Configure Ceiling Wireless Access Point - COMMANDO AirONE AIR-AP300, 802.11n

23 Jan 2023

How to Install and Configure Wi-Fi 6 Wireless Access Point - COMMANDO AirONE AIR-AP1800AX 1800Mbps

16 Jan 2023

Click on image to expanded

AIR-APO1200-V1

COMMANDO AirONE 1200Mbps, 2.4GHz+5GHz 802.11ac, Multi-Mode, Outdoor Access Point

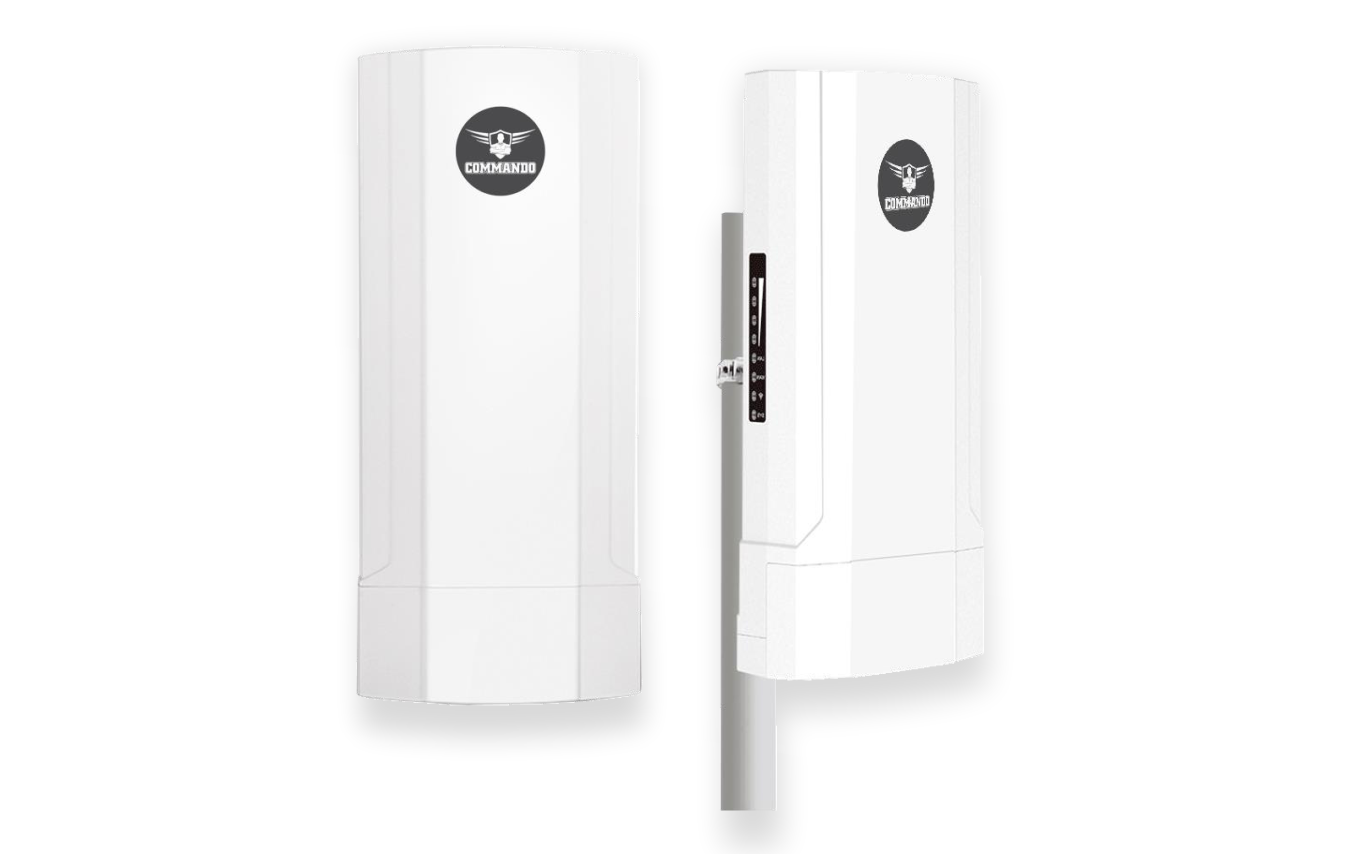

4 in 1 High Power Outdoor wireless Access Point, 1200Mbps high power industrial Outdoor wireless access point with the next generation 802.11ac Wi-Fi standard, 2x2 MIMO technology, dual band, 2.4GHz(300Mbps) and 5GHz(900Mbps), Gigabit WAN/LAN port, the fast Ethernet data rate and clear frequency 128+ end, MIMO High Gain Omni 5dBi Internal Antenna, 500mW high power, more than 500 meters Wi-Fi range, 16M Flash, 128M DDR2 RAM, PoE Support, Operation Mode Gateway Mode, Wi-Fi Range Extender/Repeater Mode, WISP Mode (Wireless Internet Service Provider) & Access Point Mode

Price & Availability:

{"highlights":"<div><span>\u2022<\/span> Multiple Operational Modes like Gateway, Repeater, WISP, AP. All COMMANDO AirONE series Outdoor APO default mode is AP mode.<\/div>\r\n<div><span>\u2022<\/span> Supports Multi SSID up to 8 with inbuilt WIFI channel analysis.<\/div>\r\n<div><span>\u2022<\/span> Supports IEEE 802.11ac\/b\/g\/n, 2.4GHz+5.8GHz Wave 2.0 Technology, MIMO High Gain Omni 5dBi Internal Antenna with RF input Power up to 500mW.<\/div>\r\n<div><span>\u2022<\/span> Support wireless RF power adjustable as per user movements from APO.<\/div>\r\n<div><span>\u2022<\/span> Wireless clients up to 128 max, with concurrent end users up to 100.<\/div>\r\n<div><span>\u2022<\/span> Support tag VLAN and VLAN management.<\/div>\r\n<div><span>\u2022<\/span> Supports intelligent load balance based on users.<\/div>\r\n<div><span>\u2022<\/span> Support seamless roaming and low-rate terminal access.<\/div>\r\n<div><span>\u2022<\/span> Dual purposes WAN or IEEE 802.3at 48V PoE+ supporting 1x 10\/100\/100Mbps and separate LAN ports 1x 10\/100\/1000Mbps.<\/div>\r\n<div><span>\u2022<\/span> Supports Wi-Fi client distance around 120 meters radius depending on surrounding conditions.<\/div>\r\n<div><span>\u2022<\/span> Dual input for power either IEEE 802.3at 48V POE+ or 12V, 1.5A DC power inputs.<\/div>\r\n<div><span>\u2022<\/span> Support Open or encryption like WPA\/WPA2PSK_TKIPAES<\/div>\r\n<div><span>\u2022<\/span> Plug and Play design with self-adaption with Zero Touch Provisioning.<\/div>\r\n<div><span>\u2022<\/span> Compact IP65 casing, silent design perfect for noise sensitive environments.<\/div>\r\n<div><span>\u2022<\/span> Affordable, Easy-to-Use AP for Small Business Networks, with Zero Configuration Required.<\/div>\r\n<div><span>\u2022<\/span> Built-in High-Performance Processor with long life, Suitable for Deployment of Large Scale Commercial Scenarios<\/div>\r\n<div><span>\u2022<\/span> Comes with one-year default warranty \u2013 optionally extendable up to 3 years.<\/div>","sub_category":"Outdoor AP","one_line_des":"COMMANDO AirONE 1200Mbps, 2.4GHz+5GHz 802.11ac, Multi-Mode, Outdoor Access Point","part_code":"AIR-APO1200-V1"}

Product Highlights : View Details

Hardware
Chipset	Qualcomm QCA9563 + QCA9882 +QCA8334
Standard	802.11ac/b/g/n, MIMO technology
Memory	128MB DDR2 RAM
Flash	16MB
Interface	1 * 10/100Mbps RJ45 WAN Port, WAN port support IEEE 802.3at standard PoE 1 * 10/100Mbps RJ45 LAN Port 1 * Reset button, press 15 seconds to revert to default setting
Antenna	Build in omni antenna, 5dBi, MIMO
Power consumption	48V PoE<30W
Size	315mm * 145 mm * 80 mm
RF Data
Frequency	2.4G: 802.11b/g/n, 5GHz: 802.11a/n/ac 2.4GHz: 2.312GHz to 2.4835GHz 5GHz: 5.020 - 6.1000 GHz
Modulation	OFDM = BPSK,QPSK, 16-QAM, 64-QAM DSSS = DBPSK, DQPSK, CCK
Data Rate	1200Mbps (2.4G 300Mbps, 5.8G 900Mbps)
Receive Sensitivity & RF Power
RF Power	2.4G:11n @MCS7:23±2DB, @MCS0:25±2DB. 11g @54M:24±2DB, @6M:26±2DB 11b @11M:26±2DB, @1M:28±2DB. 5.8G: 11a @54M:24±2DB, @6M:26±2DB. 11n @MCS7:22±2DB, @MCS0:24±2DB. 11ac @MCS9:21±2DB, @MCS0:23±2DB.
Receive Sensitivity	2.4G:11n:-70dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps, -88dbm@6Mbps. 11b: -85dbm@11Mbps, -94dbm@1Mbps. 5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps. 11n: -70dbm@MCS7, -90dbm@MCS0. 11ac:-60dbm@MCS9, -86dbm@MCS0.
EVM	11n: <=-28 DB 11g: <=-25 DB 11b: <=-10 DB 11a: <=-25 DB
PPM	±20ppm
Max Users	128
Firmware Features
Operation mode	Wireless AP, Gateway, WISP, WiFi Repeater
WAN Type	Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)
Wireless Security	64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK, 802.1x encryption
SSID	Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G)
Firewall	DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding
Protocols	IPv4
Others
Package Contents	1200Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
Environment	Operating Temperature: -40~55 Storage Temperature: -40~70 Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing
Management	Firmware GUI , Remote Management, WLAN Controller, Cloud Management System
