COMMANDO AirONE 750Mbps, 2.4GHz+5GHz 802.11ac, Indoor Access Point
Product Highlights
• Multiple Operational Modes like Gateway Mode, Repeater mode, WISP mode, AP mode (Default mode is AP mode).
• Multi SSID up to 8 with inbuilt WI-FI channel analysis.
• Supports IEEE 802.11ac/b/g/n 2.4GHz+5GHz Wireless which having dual band with radio RF Power up to 27dBm.
• Support wireless RF power adjustable as per user movements from AP.
• Access end users up to 128 max, with concurrent end users up to 90.
• Support tag VLAN and VLAN management.
• Supports intelligent load balance based on users.
• Support seamless roaming and low-rate terminal access.
• Dual purposes WAN or IEEE 802.3at Port (PoE+) port supporting 1x 10/100Mbps.
• Dedicated LAN ports 1x 10/100Mbps.
• Supports Wi-Fi client distance 91 meters and above depending on surrounding conditions.
• Dual input for power either PoE+ or DC power inputs 12V, 1.5A.
• Support Open or encryption like WPA/WPA2PSK_TKIPAES.
• Plug and Play design simplifies installation with self-adaption.
• Compact, silent design perfect for noise sensitive environments.
• With Zero Touch Provisioning: Plug and play and no setup. Affordable, Easy-to-Use AP for Small Business Networks, with Zero Configuration Required.
• Built-in High-Performance Processor with long life, Suitable for Deployment of Large Scale Commercial Scenarios
• Comes with one-year default warranty – optionally extendable up to 3 years.
Software Highlights
Home
Device Information like CPU Usage, Memory Usage, LAN Information like IP Mode Get IP From AC/Gateway/Static, Status with 2G/5G Wi-Fi, Clients Status with information like SSID, Channel, Bandwidth, Encrypt, MAC Address, Operation Mode configure like AP/ FAT AP Mode with Uptime, Flow in bps for AP Downstream and AP Upstream
Wizard
Gateway Mode, Repeater Mode, WISP Mode, AP Mode (Default Selection)
Wi-Fi
2G/5G Wi-Fi with Basic and VAP (1 to 3) ON/OFF, SSID, Hide your SSID, Bandwidth, Channel, Encryption Open/Encryption with WPA/WPA2PSK_TKIPAES, MAC ACL with Add, Delete, Apply with disable/Allow/ Prohibit option, Wi-Fi Timer Off/ON with Time Frame, Advanced setting like Country Region, 2G/5G Channels, Multicast Fast, Maximum clients AP, WLAN Partition, Short GI, Coverage Threshold(-95dBm~-65dBm), TX Power, DFS.
Network
LAN Settings with DHCP server option, Static DHCP, VLAN Settings, Cloud Server Settings
Manage
Configure, Reboot, Modify Password, Upgrade, Time, Log
COMMANDO AirONE 750Mbps, 2.4GHz+5GHz 802.11ac, Indoor Access Point
Click on image to expanded
AIR-AP750
COMMANDO AirONE 750Mbps, 2.4GHz+5GHz 802.11ac, Indoor Access Point
4 in 1 Access Point, 750 Mbps, 128 Users, Dual Radio 2.4GHz+5GHz 802.11ac, MIMO High Gain Omni 5dBi Internal Antenna, 16 MB Flash, 64 MB RAM, PoE Support, Dual Mode FIT and FAT, Operation Mode, Gateway Mode, Wi-Fi Range Extender/Repeater Mode, WISP Mode (Wireless Internet service provider), Wireless Access Point Mode.
Price & Availability:
{"highlights":"<div><span>\u2022<\/span> Multiple Operational Modes like Gateway Mode, Repeater mode, WISP mode, AP mode (Default mode is AP mode).<\/div>\r\n<div><span>\u2022<\/span> Multi SSID up to 8 with inbuilt WI-FI channel analysis.<\/div>\r\n<div><span>\u2022<\/span> Supports IEEE 802.11ac\/b\/g\/n 2.4GHz+5GHz Wireless which having dual band with radio RF Power up to 27dBm.<\/div>\r\n<div><span>\u2022<\/span> Support wireless RF power adjustable as per user movements from AP.<\/div>\r\n<div><span>\u2022<\/span> Access end users up to 128 max, with concurrent end users up to 90.<\/div>\r\n<div><span>\u2022<\/span> Support tag VLAN and VLAN management.<\/div>\r\n<div><span>\u2022<\/span> Supports intelligent load balance based on users.<\/div>\r\n<div><span>\u2022<\/span> Support seamless roaming and low-rate terminal access.<\/div>\r\n<div><span>\u2022<\/span> Dual purposes WAN or IEEE 802.3at Port (PoE+) port supporting 1x 10\/100Mbps.<\/div>\r\n<div><span>\u2022<\/span> Dedicated LAN ports 1x 10\/100Mbps.<\/div>\r\n<div><span>\u2022<\/span> Supports Wi-Fi client distance 91 meters and above depending on surrounding conditions.<\/div>\r\n<div><span>\u2022<\/span> Dual input for power either PoE+ or DC power inputs 12V, 1.5A.<\/div>\r\n<div><span>\u2022<\/span> Support Open or encryption like WPA\/WPA2PSK_TKIPAES.<\/div>\r\n<div><span>\u2022<\/span> Plug and Play design simplifies installation with self-adaption.<\/div>\r\n<div><span>\u2022<\/span> Compact, silent design perfect for noise sensitive environments.<\/div>\r\n<div><span>\u2022<\/span> With Zero Touch Provisioning: Plug and play and no setup. Affordable, Easy-to-Use AP for Small Business Networks, with Zero Configuration Required.<\/div>\r\n<div><span>\u2022<\/span> Built-in High-Performance Processor with long life, Suitable for Deployment of Large Scale Commercial Scenarios<\/div>\r\n<div><span>\u2022<\/span> Comes with one-year default warranty \u2013 optionally extendable up to 3 years.<\/div>","sub_category":"Ceiling AP","one_line_des":"COMMANDO AirONE 750Mbps, 2.4GHz+5GHz 802.11ac, Indoor Access Point","part_code":"AIR-AP750"}
AIR-AP750 is an 11ac dual band indoor ceiling mount wireless access point for hotels, cafe, hospital, school, shopping mall and home. Comply IEEE 802.11ac MIMO Technology, 750Mbps high speed, integrated IEEE 802.3af Power over Ethernet (PoE), it can be installed in areas where power outlets are not readily available, easy installation and lower cost; Housed in a ceiling mountable case, the AIR-AP750 can be installed on a wall or ceiling to blends in nicely with most interior decorations in the house, to extend optimum wireless signal. Work with WLAN Controller, centralized configuration and management, easy to achieve Wi-Fi Coverage and maintenance, access into Cloud Server to do remote monitor and Captive Portal authentication for more business value.
Product Features:
11ac dual band and 750Mbps High Data Rate
Comply with 802.11ac/b/g/n MIMO Technology, supply 750Mbps faster data rate, 80+ concurrent end users, the 2.4GHz and 5GHz dual band, less frequency interference to supply a stable wireless coverage.
Adjustable RF Power
The transmission RF power is adjustable based on environment Cut down RF power in place with high density of people or wireless AP to reduce Wi-Fi interference ; Then Increase RF power in large area to improve the signal strength.
Power over Ethernet (PoE)
Integrated IEEE 802.3af Power over Ethernet (PoE), work with standard PoE switch, plug and play, installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Build in Wi-Fi Channel Analysis Tool for best channel
Build in Smart Channel Analysis Tool, help to select the less Wi-Fi Interference channels, ensure the stability wireless signal
Multiple SSID and Tag VLAN Support
It support multiple SSID up to 4, different SSID can banding different VLAN ID to achieve user isolation and data security.
Work with Cloud Server for Remote Management and Captive Portal
Access into cloud server, easy to do remote management and maintenance, then support captive portal authentication like WeChat Login, Facebook Login, Google Login...
Information
AIR-AP750 is an 11ac dual band indoor ceiling mount wireless access point for hotels, cafe, hospital, school, shopping mall and home. Comply IEEE 802.11ac MIMO Technology, 750Mbps high speed, integrated IEEE 802.3af Power over Ethernet (PoE), it can be installed in areas where power outlets are not readily available, easy installation and lower cost; Housed in a ceiling mountable case, the AIR-AP750 can be installed on a wall or ceiling to blends in nicely with most interior decorations in the house, to extend optimum wireless signal. Work with WLAN Controller, centralized configuration and management, easy to achieve Wi-Fi Coverage and maintenance, access into Cloud Server to do remote monitor and Captive Portal authentication for more business value.
Product Features:
11ac dual band and 750Mbps High Data Rate
Comply with 802.11ac/b/g/n MIMO Technology, supply 750Mbps faster data rate, 80+ concurrent end users, the 2.4GHz and 5GHz dual band, less frequency interference to supply a stable wireless coverage.
Adjustable RF Power
The transmission RF power is adjustable based on environment Cut down RF power in place with high density of people or wireless AP to reduce Wi-Fi interference ; Then Increase RF power in large area to improve the signal strength.
Power over Ethernet (PoE)
Integrated IEEE 802.3af Power over Ethernet (PoE), work with standard PoE switch, plug and play, installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Build in Wi-Fi Channel Analysis Tool for best channel
Build in Smart Channel Analysis Tool, help to select the less Wi-Fi Interference channels, ensure the stability wireless signal
Multiple SSID and Tag VLAN Support
It support multiple SSID up to 4, different SSID can banding different VLAN ID to achieve user isolation and data security.
Work with Cloud Server for Remote Management and Captive Portal
Access into cloud server, easy to do remote management and maintenance, then support captive portal authentication like WeChat Login, Facebook Login, Google Login...
Specification
Hardware
Wireless
802.11ac, 750Mbps MIMO Technology
Interface

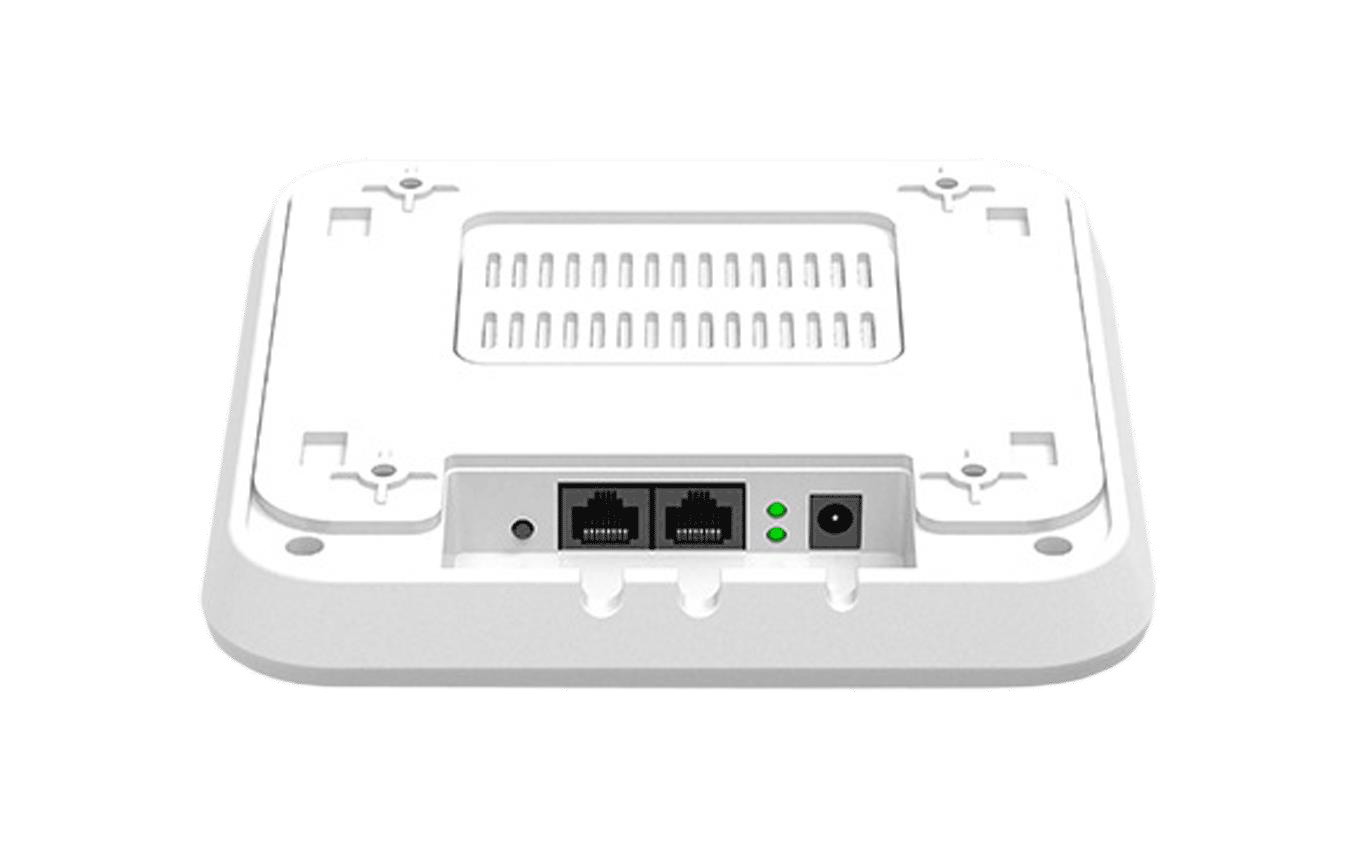

1 * 10/100Mbps WAN Port 1 * 10/100Mbps LAN Port 1* Reset Button to restore factory default 1*DC Port
Antenna
2.4GHz High Gain Omni 5dBi Internal Antenna, 5.8GHz 5dBi Internal Antenna
