AIR-AP1200

COMMANDO AirONE 1200Mbps, 2.4GHz+5GHz 802.11ac, Indoor Access Point

Data Sheet Config Guide Gallery YouTube

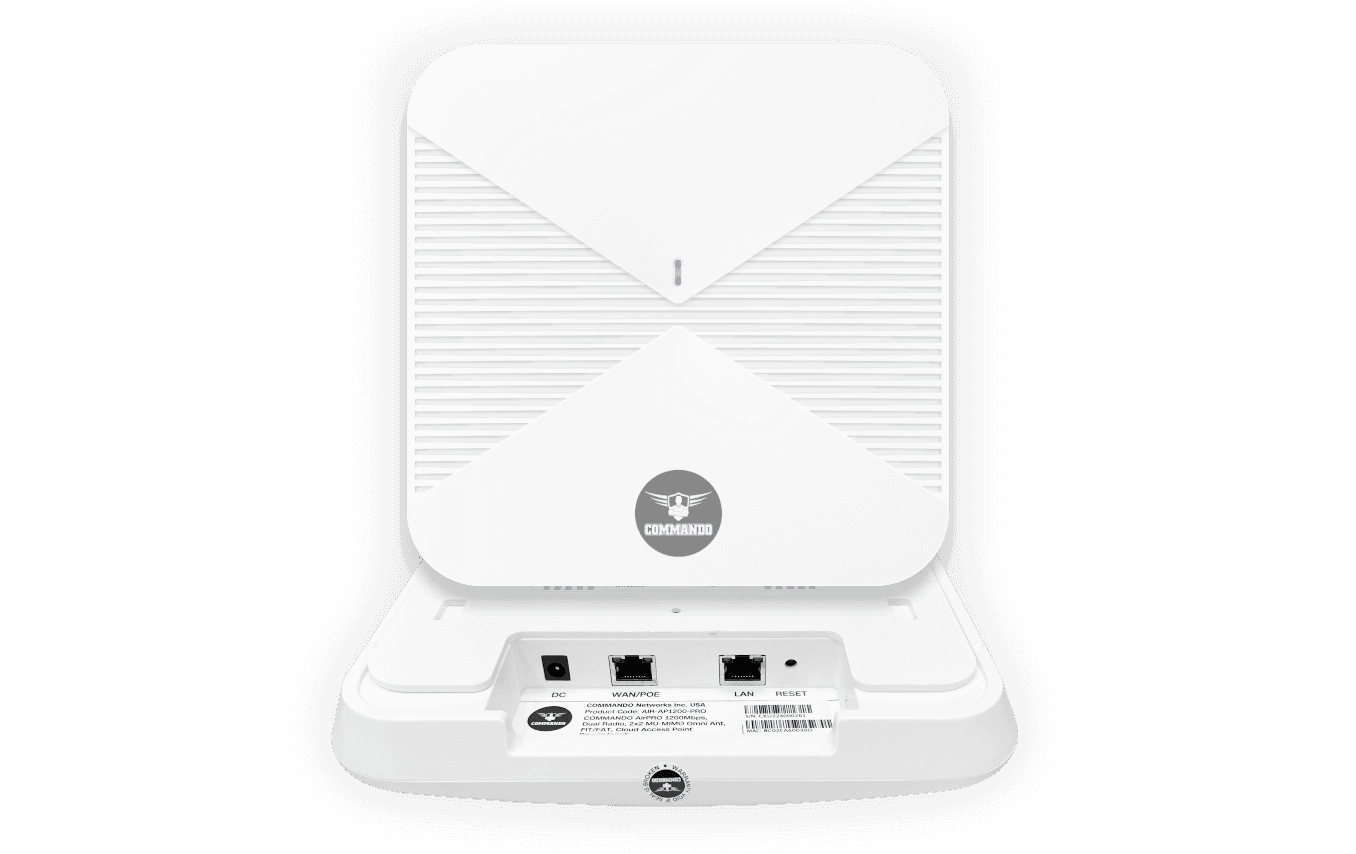

AIR-AP1200

COMMANDO AirONE 1200Mbps, 2.4GHz+5GHz 802.11ac, Indoor Access Point

Product Highlights

Multiple Operational Modes like Gateway Mode, Repeater mode, WISP mode, AP mode (Default mode is AP mode).
Multi SSID up to 8 with inbuilt WIFI channel analysis.
Supports IEEE 802.11ac/b/g/n 2.4GHz+5GHz Wireless which having dual band with radio RF Power up to 28dBm.
Support wireless RF power adjustable as per user movements from AP.
Access end users up to 128 max, with concurrent end users up to 120.
Support tag VLAN and VLAN management.
Supports intelligent load balance based on users.
Support seamless roaming and low-rate terminal access.

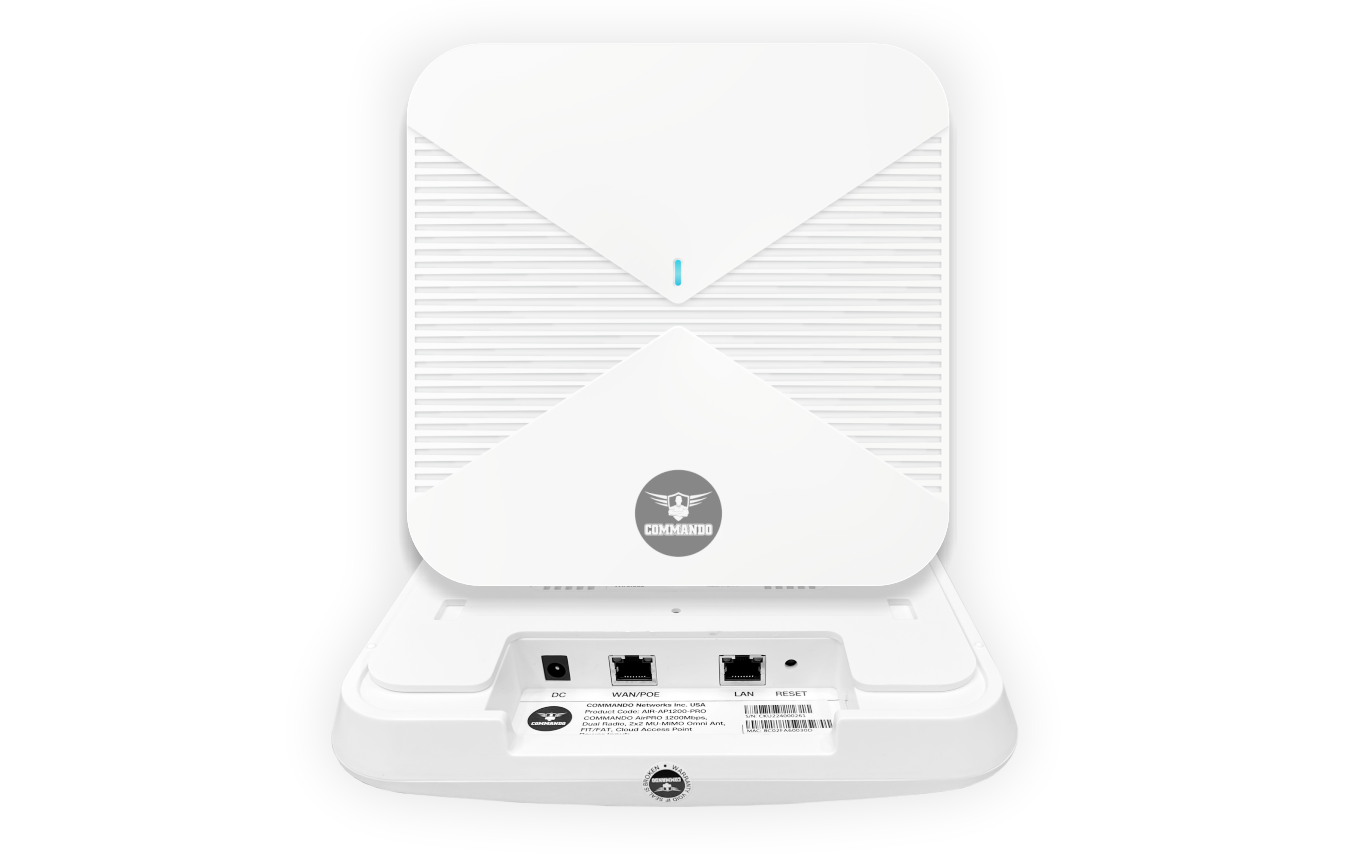

Dual purposes WAN or IEEE 802.3at Port (PoE+) port supporting 1x 10/100/1000Mbps and dedicated LAN ports 1x 10/100/1000Mbps.
Supports Wi-Fi client distance 91 meters and above depending on surrounding conditions.
Dual input for power either PoE+ or DC power inputs 12V, 1.5A.
Support Open or encryption like WPA/WPA2PSK_TKIPAES.
Plug and Play design simplifies installation with self-adaption.
Compact, silent design perfect for noise sensitive environments.
With Zero Touch Provisioning: Plug and play and no setup. Affordable, Easy-to-Use AP for Small Business Networks, with Zero Configuration Required.
Built-in High-Performance Processor with long life, Suitable for Deployment of Large Scale Commercial Scenarios
Comes with one-year default warranty – optionally extendable up to 3 years.

Software Highlights


Home

Device Information like CPU Usage, Memory Usage, LAN Information like IP Mode Get IP From AC/Gateway/Static, Status with 2G/5G Wi-Fi, Clients Status with information like SSID, Channel, Bandwidth, Encrypt, MAC Address, Operation Mode configure like AP/ Fat AP Mode with Uptime, Flow in bps for AP Downstream and AP Upstream

Wizard

Gateway Mode, Repeater Mode, WISP Mode, AP Mode (Default Selection)

Wi-Fi

2G/5G Wi-Fi with Basic and VAP (1 to 3) ON/OFF, SSID, Hide your SSID, Bandwidth, Channel, Encryption Open/Encryption with WPA/WPA2PSK_TKIPAES, MAC ACL with Add, Delete, Apply with disable/Allow/ Prohibit option, Wi-Fi Timer Off/ON with Time Frame, Advanced setting like Country Region, 2G/5G Channels, Multicast Fast, Maximum clients for AP, WLAN Partition, Short GI, Coverage Threshold(-95dBm~-65dBm), TX Power, DFS.

Network

LAN Settings with DHCP server option, Static DHCP, VLAN Settings, Cloud Server Settings

Manage

Configure, Reboot, Modify Password, Upgrade, Time, Log

https://www.commandonetworks.com//AIR-AP1200
1

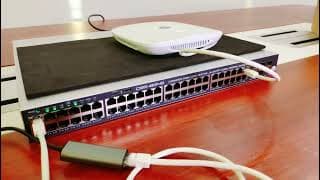

AIR-AP1200 -- COMMANDO AirONE 1200Mbps, 2.4GHz+5GHz 802.11ac, Indoor Access Point
