E3000 Series Switches

COMMANDO Soldier E3000 Series Managed Routing Switches are L3 Aggregation and Access layer Switches with SoldierOS. It offers advance software with feature-set inbuilt free for lifetime with zero recurring expenses. It is designed with performance and cost efficiency priority.

Data Sheet CLI Guide Configuration Guide Software Comparison Gallery YouTube

COMMANDO SOLDIER E3000 Series Routing Switches

COMMANDO Soldier E3000 Managed Routing Switches are L3 Aggregation and Access layer switch with Intelligent PoE/PoE+ with Automated Scheduling, Perpetual POE/PoE+ with 10G uplinks. It is a suitably best choice switch for Enterprise, Telecom, ISP, Industrial, Campus, Retail and Hospitality, Security and Surveillance, IoT, Cloud, Metro, SMBs networks. Soldier E3000 is designed with performance and cost efficiency priority.

COMMANDO Soldier E3000 Switches come with Dual-image OS offering higher availability, redundancy and operational flexibility. These switches are built for quality, offer high and heavy-duty performance in most demanding networking environment.

COMMANDO Soldier E3000 Series Switches are engineered to deliver high-quality, high-performance and heavy-duty networking for the most demanding and complex networking environments, providing robust reliability, uninterrupted performance and operational assurance for businesses and enterprises.

COMMANDO Soldier E3000, C3000 and IE3000 Series Switches come with same SoldierOS 3000 feature set.

COMMANDO Networks - 0 / 0

SoldierOS 3000 Web GUI Explained - COMMANDO Soldier C3000 / E3000 Series L3 Managed Switches

30 Dec 2022

E3000 Series Software Highlight

E3000-24G-4X

COMMANDO Soldier E3000 24GE, 4x10G SFP+ Uplinks, Routing Switch

• 24 x 10/100/1000Mbps Ethernet ports

• 4 x 10G SFP+ Uplink ports

• 1 x RJ45 Console port

• 1 x Mini USB Console port

• 1 x USB 2.0 Storage port

• Switching Capacity: 128 Gbps

• Thunder Protection: ±6 KV

• Power: 48W

• 1 Temperature Control Fan

• Power Supply: AC

• AC: 100~240V 50/60Hz

• SoldierOS L3 IP Base Software Feature Set

• L3 GigE 10G SFP+ Uplink Routing Switch

• 3 Year Extendable Warranty

https://www.commandonetworks.com/switches

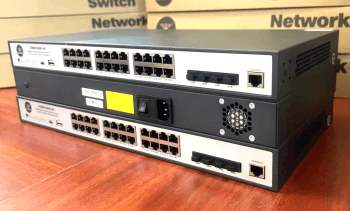

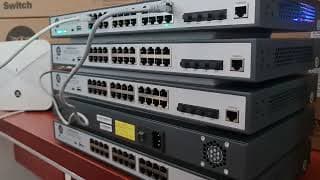

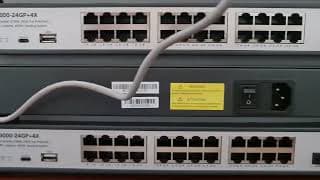

E3000-24GP+4X

COMMANDO Soldier E3000 24GE Full PoE/PoE+, 4x10G SFP+ Uplinks, 450W, Routing Switch

• 24 x 10/100/1000Mbps Ethernet PoE+ ports

• 4 x 10G SFP+ Uplink ports

• 1 x RJ45 Console port

• 1 x Mini USB Console port

• 1 x USB 2.0 Storage port

• 24 x IEEE802.3af 15.4W PoE ports

• 12 x IEEE802.3at 30W PoE+ ports

• Switching Capacity: 128 Gbps

• Thunder Protection: ±6 KV

• Power: 450W

• 1 Temperature Control Fan

• Power Supply: AC

• AC: 180~240V 50/60Hz

• SoldierOS L3 IP Base Software Feature Set

• L3 GigE PoE+ 10G SFP+ Uplink Routing Switch

• 3 Year Extendable Warranty

https://www.commandonetworks.com/switches

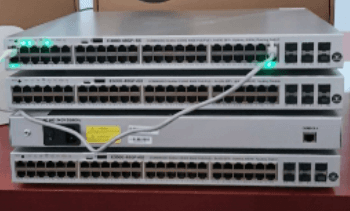

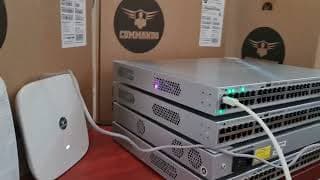

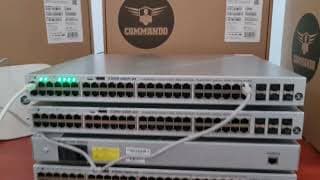

E3000-48GP+6X

COMMANDO Soldier E3000 48GE PoE/PoE+, 6x10G SFP+ Uplinks, 600W, Routing Switch

• 48 x 10/100/1000Mbps Ethernet PoE+ ports

• 6 x 10G SFP+ Uplink ports

• 1 x RJ45 Console port

• 1 x Mini USB Console port

• 1 x USB 2.0 Storage port

• 38 x IEEE802.3af 15.4W PoE ports

• 18 x IEEE802.3at 30W PoE+ ports

• Switching Capacity: 216 Gbps

• Thunder Protection: ±6 KV

• Power: 600W

• 3 Temperature Control Fans

• Power Supply: AC

• AC: 180~240V 50/60Hz

• SoldierOS L3 IP Base Software Feature Set

• L3 GigE PoE+ 10G SFP+ Uplink Routing Switch

• 3 Year Extendable Warranty

https://www.commandonetworks.com/switches

E3000-48G-6X

COMMANDO Soldier E3000 48GE, 6x10G SFP+ Uplinks, Routing Switch

• 48 x 10/100/1000Mbps Ethernet ports

• 6 x 10G SFP+ Uplink ports

• 1 x RJ45 Console port

• 1 x Mini USB Console port

• 1 x USB 2.0 Storage port

• Switching Capacity: 216 Gbps

• Thunder Protection: ±6 KV

• Power: 100W

• 2 Temperature Control Fans

• Power Supply: AC

• AC: 100~240V 50/60Hz

• SoldierOS L3 IP Base Software Feature Set

• L3 GigE PoE+ 10G SFP+ Uplink Routing Switch

• 3 Year Extendable Warranty

https://www.commandonetworks.com/switches

SOFTWARE HIGHLIGHTS

L3 Features

• Static Route

• Dynamic Routing, RIPv1/v2, OSPF v1/v2

• Policy-based Routing (PBR) for IPv4 and IPv6

• VRRP

• IGMP v1/v2/v3, IGMP Proxy

• Static Multicast Route

• Multicast Receive Control

• Illegal Multicast Source Detect

• ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit

• Dynamic ARP Inspection (DAI)

• DNS Server, Client, DNS Relay

IPv6 Features

• ICMPv6, ND, DNSv6

• MLD Snooping, IPv6 Multicast VLAN

• MLDv1/v2, IPv6 ACL, IPv6 QoS

QoS

• 13 Queues

• SP, WRR

• Traffic Classification Based on 802.1p COS, ToS, DiffServ DSCP, ACL, port number

• Traffic Policing

• PRI Mark/Remark

• Surveillance VLAN

ACL

• IP ACL, MAC ACL, IP-MAC ACL

• Standard and Expanded ACL Based on source/destination IP or MAC, IP Protocol,

• TCP/UDP port, DSCP, ToS, IP Precedence), VLAN, Tag/Untag, CoS

• REDIRECT and Accounting based ACL

• Rules can be configured to port, VLAN, VLAN routing interfaces

• Time Ranged ACL

Security

• 802.1x AAA

• Port, MAC based authentication

• Accounting based on time length and traffic

• Guest VLAN and auto VLAN

• RADIUS for IPv4 and IPv6

• TACACS+ for IPv4 and IPv6

DHCPv4/v6 Traffic Monitor

• DHCP Server/Client for IPv4/IPv6

• DHCP Relay/Option 82

• DHCP Snooping/Option 82

Tunneling

• L3 GRE

• 6 to 4

• ISATAP

• IP-in-IP

• Configured Tunnel

L1, L2 Features

• IEEE802.3(10Base-T)

• IEEE802.3u(100Base-TX)

• IEEE802.3z(1000BASE-X)

• IEEE802.3ab(1000Base-T)

• IEEE802.3ae(10GBase), IEEE802.3x

• IEEE802.3an (10GBASE-T)

• Port loopback detection

• LLDP and LLDP-MED

• UDLD

• 802.3ad LACP, 26 Trunk group with max 8 ports

• LACP load balance

• N:1 Port Mirroring

• RSPAN

• ERSPAN

• IEEEE802.1d(STP)

• IEEEE802.1w(RSTP)

• IEEEE802.1s(MSTP)

• Root Guard

• BPDU Guard

• BPDU Tunnel

• IP Source Guard

• 802.1Q, 4K VLAN

• MAC VLAN, Voice VLAN, Protocol VLAN, Multicast VLAN

• QinQ, Selective QinQ, Flexible QinQ

• GVRP

• N:1 VLAN Translation

• Broadcast / Multicast / Unicast Storm Control

• IGMP v1/v2/v3 Snooping and L2 Query

• ND Snooping

• MLDv1/v2 Snooping

• Port Security

• Flow Control: HOL, IEEE802.3x

• Bandwidth Control

Traffic Monitor

• sFlow Traffic Analysis

Security Network Management

• CLI, WEB, Telnet, SNMPv1/v2c/v3 through IPv4 and IPv6

• Syslog and external Syslog Server HTTP SSL

• SNMP MIB, SNMP TRAP

• FTP/TFTP

• SNTP/NTP

• RMON 1,2,3,9

• Authentication by Radius/TACACS

• SSH v1/v2

• Dual firmware images/ Configuration files

GREEN Features

• IEEE 802.3az (Energy Efficient Ethernet)

• Auto FAN Speed Control, Temperature Alarm

• LED Shut-Off

MIB (Management Information Base) counters

• TCP/IP-based MIB-II (RFC 1213)

• Ethernet-like MIB (RFC 3635)

• Interface Group MIB (RFC 2863)

• RMON (Remote Network Monitoring) MIB (RFC 2819)

• Bridge MIB (RFC 1493)

• Bridge MIB Extension (RFC 2674)

https://www.commandonetworks.com/switches/E3000
