E1000 Series Switches

COMMANDO SCOUT E1000 Series Unmanaged Switches

Data Sheet Gallery YouTube

COMMANDO SCOUT E1000 Series Unmanaged Switches

  • 8 to 48 x 10/100Mbps or 10/100/1000Mbps Ethernet Ports along with fixed 1G fiber/1G copper Uplinks and PoE/PoE+ and non PoE Models.
  • Extra 2/4 Ports slots with separate, fixed 1G Fiber/ 1GE Copper Switchports or Uplinks.
  • Power over Ethernet (PoE) / Power over Ethernet plus (PoE+) models to provide power on all ports to IEEE 802.3af and IEEE 802.3at (15.4W, 30W) capable devices including Wireless AP, Bridges, IoT etc. according to the power budget Up to 600 W along with backward compatibility.
  • All ports have PoE/PoE+ capability and 30W Max Per port.
  • PD detection will automatically detect and provide required power for your PoE/PoE+ devices.
  • Automatically adjust the PoE/PoE+ power for connected PoE devices based on the cable length and supports up to 250m of copper cable length.
  • Backplane Bandwidth: 5.6Gbps-104Gbps
  • MAC address Table: 8000 entries
  • MAC Address Auto-Learning and Auto-Aging
  • Easy Installation, Plug-and-play installation with no configuration required
  • Support Store-and-forward Switching
  • Enclosure Type Desktop, Rack/Wall mountable - 1U.
  • Surge protection ±4 kV
...read more
COMMANDO Networks - 0 / 0
1
C2000-48GP+8CF -- COMMANDO C2000 48GE Full PoE/PoE+, 4GE/4SFP Combo Uplinks, 800W, Managed Switch
29 Apr 2024
2
E300-8P+2FE-24V --- COMMANDO Scout E300 8FE 24V Full PoE, 2FE Uplinks, 130W, Unmanaged Switch
29 Apr 2024
3
E300-8GP+2GE --- COMMANDO Scout E300 8GE Full PoE/PoE+, 2GE Uplinks, 130W, Unmanaged Switch
29 Apr 2024
4
IE1000-8GP+2SFP -- COMMANDO IE1000 8GE Full PoE/Full PoE+, 2SFP Uplinks, Unmanaged Industrial Switch
26 Feb 2024
5
C3000-48GP+6X -- COMMANDO Soldier C3000 48GE PoE+, 6x10G SFP+ Uplinks, 800W, Routing Switch
15 Sep 2023
6
C3500-24X+2C -- COMMANDO Marshall C3500 24x10G SFP+, 2x100G QSFP28 Uplinks, Fiber Routing Switch
15 Sep 2023
7
C3500-24X+2Q -- COMMANDO Marshall C3500 24x10G SFP+, 2x40G QSFP+ Uplinks, Fiber Routing Switch
15 Sep 2023
8
C3500-24X -- COMMANDO Marshall C3500 24x10G SFP+, Fiber Routing Switch
15 Sep 2023
9
NTP Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
28 Mar 2023
10
Device Management Configuration - COMMANDO C3500 Series Core & Data Center L3+ Routing Switch
24 Mar 2023
11
Mirror Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
24 Mar 2023
12
Syslog Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
24 Mar 2023
13
DDoS Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
23 Mar 2023
14
TACACS+ Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
23 Mar 2023
15
AAA Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
22 Mar 2023
16
E300-8P+2FE -- COMMANDO Scout E300 8FE PoE+, 2FE Uplinks, 120W, Unmanaged Switch -- 8+2 PoE Switch
22 Mar 2023
17
E300-4P+2FE -- COMMANDO Scout E300 4FE PoE+, 2FE Uplinks, 65W, Unmanaged Switch -- 4+2 PoE Switch
22 Mar 2023
18
IP Source Guard Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
21 Mar 2023
19
DHCP Snooping Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
21 Mar 2023
20
ARP Inspection Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
20 Mar 2023
21
C2000-8SFP+4CF -- COMMANDO Soldier C2000 8SFP, 2GE+2SFP Uplinks, Fiber Managed Switch -- 8+4 SFP
16 Mar 2023
22
Default, Static, Connected Route Configurations - COMMANDO Marshall C3500 Series L3+ Routing Switch
03 Mar 2023
E1000 Series PoE non-PoE

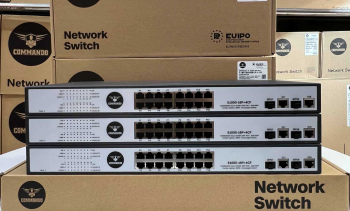

E1000-16P+4CF

COMMANDO Scout E1000 16FE Full PoE/PoE+, 2GE/2SFP Combo Uplinks, 260W, Unmanaged Switch


• 16 x 10/100Mbps Ethernet PoE+ ports
• 2 x 10/100/1000Mbps Ethernet / 2 x 1G SFP Combo Uplink ports
• 16 x IEEE802.3af 15.4W PoE ports
• 8 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 7.2 Gbps
• Thunder Protection: ±4 KV
• Power: 260W
• 1 Fan
• Power Supply: AC
• AC: 180~240V 50/60Hz
• Gigabit PoE+ Unmanaged Switch
• 3 Year Extendable Warranty

https://www.commandonetworks.com/switches

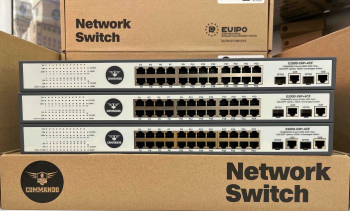

E1000-24P+4CF

COMMANDO Scout E1000 24FE Full PoE/PoE+, 2GE/2SFP Combo Uplinks, 450W, Unmanaged Switch


• 24 x 10/100Mbps Ethernet PoE+ ports
• 2 x 10/100/1000Mbps Ethernet / 2 x 1G SFP Combo Uplink ports
• 16 x IEEE802.3af 15.4W PoE ports
• 8 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 8.8 Gbps
• Thunder Protection: ±4 KV
• Power: 450W
• 1 Fan
• Power Supply: AC
• AC: 180~240V 50/60Hz
• Gigabit PoE+ Unmanaged Switch
• 3 Year Extendable Warranty

https://www.commandonetworks.com/switches
E1000-8P+4CF

COMMANDO Scout E1000 8FE Full PoE/PoE+, 2GE/2SFP Combo Uplinks, 150W, Unmanaged Switch


• 8 x 10/100Mbps Ethernet PoE+ ports
• 2 x 10/100/1000Mbps Ethernet / 2 x 1G SFP Combo Uplink ports
• 8 x IEEE802.3af 15.4W PoE ports
• 4 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 5.6 Gbps
• Thunder Protection: ±4 KV
• Power: 150W
• Power Supply: AC
• AC: 100~240V 50/60Hz
• Gigabit PoE+ Unmanaged Switch
• 3 Year Extendable Warranty

https://www.commandonetworks.com/switches
E1000-48GP+8CF

COMMANDO Scout E1000 48GE PoE/PoE+, 2GE+2SFP Uplinks, 600W, Unmanaged Switch


• 48 x 10/100/1000Mbps Ethernet PoE+ ports
• 4 x 10/100/1000Mbps Ethernet / 4 x 1G SFP Uplink ports
• 38 x IEEE802.3af 15.4W PoE ports
• 18 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 104 Gbps
• Thunder Protection: ±4 KV
• Power: 600W
• 3 Fans
• Power Supply: AC
• AC: 180~240V 50/60Hz
• Gigabit PoE+ Unmanaged Switch
• 3 Year Extendable Warranty

https://www.commandonetworks.com/switches
E1000-48P+4CF

COMMANDO Scout E1000 48GE Full PoE/PoE+, 2GE+2SFP Uplinks, 600W, Unmanaged Switch



https://www.commandonetworks.com/switches
E1000-16G+4CF

COMMANDO Scout E1000 16GE, 2GE+2SFP Uplinks, Unmanaged Switch


• 16 x 10/100/1000Mbps Ethernet ports
• 2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
• Switching Capacity: 40 Gbps
• Thunder Protection: ±4 KV
• Power: 24W
• Power Supply: AC
• AC: 100~240V 50/60Hz
• Gigabit Unmanaged Switch
• 3 Year Extendable Warranty

https://www.commandonetworks.com/switches

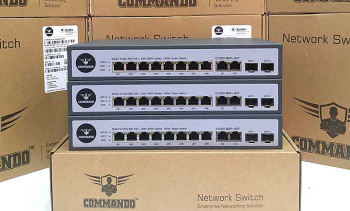

E1000-8GP+4CF

COMMANDO Scout E1000 8GE Full PoE/PoE+, 2GE+2SFP Uplinks, 150W, Unmanaged Switch


• 8 x 10/100/1000Mbps Ethernet PoE+ ports
• 2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
• 8 x IEEE802.3af 15.4W PoE ports
• 4 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 24 Gbps
• Thunder Protection: ±4 KV
• Power: 150W
• Power Supply: AC
• AC: 100~240V 50/60Hz
• Gigabit PoE+ Unmanaged Switch
• 3 Year Extendable Warranty

https://www.commandonetworks.com/switches

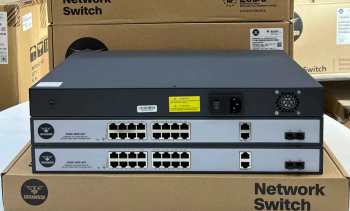

E1000-16GP+4CF

COMMANDO Scout E1000 16GE Full PoE/PoE+, 2GE+2SFP Uplinks, 260W, Unmanaged Switch


• 16 x 10/100/1000Mbps Ethernet PoE+ ports
• 2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
• 16 x IEEE802.3af 15.4W PoE ports
• 8 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 40 Gbps
• Thunder Protection: ±4 KV
• Power: 260W
• 1 Fan
• Power Supply: AC
• AC: 180~240V 50/60Hz
• Gigabit PoE+ Unmanaged Switch
• 3 Year Extendable Warranty

https://www.commandonetworks.com/switches
E1000-24GP+4CF

COMMANDO Scout E1000 24GE Full PoE/PoE+, 2GE+2SFP Uplinks, 450W, Unmanaged Switch


• 24 x 10/100/1000Mbps Ethernet PoE+ ports
• 2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
• 24 x IEEE802.3af 15.4W PoE ports
• 12 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 56 Gbps
• Thunder Protection: ±4 KV
• Power: 450W
• 1 Fan
• Power Supply: AC
• AC: 180~240V 50/60Hz
• Gigabit PoE+ Unmanaged Switch
• 3 Year Extendable Warranty

https://www.commandonetworks.com/switches
