COMMANDO Marshall C3500 Series Routing Switches

COMMANDO Marshall C3500 Fiber Routing Switches are Next Generation Core and Data Center L3+ Managed Routing Switch comes with L3+ full feature software licensee free for Lifetime, making it suitable for enterprise, data center, and large network environments. It provides high availability, scalability, security, energy efficiency, and ease of operation with innovative features ideal for high-density aggregation, core layer and data center as its high performance, availability and reliability requirement. It is a suitably best choice switch for Enterprise, Data Centers, Telecom, ISP, Industrial, Campus, Retail and Hospitality, Security and Surveillance, IoT, Cloud, Metro, HCI, SMBs Networks. Convenient Deployment as dual power design allows customers to use either AC or DC power sources according to need of deployment. The switches come with advance software feature set inbuilt free-for-lifetime with zero recurring expenses.

COMMANDO Marshall C3500 Fiber Routing Switches are Next Generation Core and Data Center L3+ Managed Routing Switch comes with L3+ full feature software licensee free for Lifetime, making it suitable for enterprise, data center, and large network environments. It provides high availability, scalability, security, energy efficiency, and ease of operation with innovative features ideal for high-density aggregation, core layer and data center as its high performance, availability and reliability requirement. It is a suitably best choice switch for Enterprise, Data Centers, Telecom, ISP, Industrial, Campus, Retail and Hospitality, Security and Surveillance, IoT, Cloud, Metro, HCI, SMBs Networks. Convenient Deployment as dual power design allows customers to use either AC or DC power sources according to need of deployment.

COMMANDO Marshall C3500 Switches come with MarshallOS with feature set such as VSF (Virtual Switch Framework), Priority Flow Control (PFC), Explicit Congestion Notification (ECN) and Data Center TCP, MLAG (Multi-Chassis Link Aggregation), Overlay technology NVGRE/VXLAN/GENEVE, RPC-API for SDN (Software Defined Network, Dynamic Routing (IPv4 Based) BGP4, RIPv1/v2, OSPFv2, IS-IS, Dynamic Routing (IPv6 Based) RIPng, OSPFv3, BGP4+, OSPF multiple process, Policy-based Routing (PBR) for IPv4 and IPv6, VRRP, URPF, ECMP, BFD, IGMP v1/v2/v3, IGMP Proxy, Static Multicast Route, Multicast Receive Control, Illegal Multicast Source Detect, ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit, Anti ARP/NDP Cheat, Anti ARP/NDP Scan. Dynamic ARP Inspection (DAI), DNS Client, DNS Relay, GRE Tunnel, Static Route and more.

COMMANDO Marshall C3500 Switches are engineered to deliver high-quality, high-performance and heavy duty networking for the most demanding and complex networking environments, providing robust reliability, uninterrupted performance and operational assurance for businesses and enterprises.

...read more
1
C3500-24X+2C -- COMMANDO Marshall C3500 24x10G SFP+, 2x100G QSFP28 Uplinks, Fiber Routing Switch
15 Sep 2023
2
C3500-24X+2Q -- COMMANDO Marshall C3500 24x10G SFP+, 2x40G QSFP+ Uplinks, Fiber Routing Switch
15 Sep 2023
3
C3500-24X -- COMMANDO Marshall C3500 24x10G SFP+, Fiber Routing Switch
15 Sep 2023
4
NTP Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
28 Mar 2023
5
Device Management Configuration - COMMANDO C3500 Series Core & Data Center L3+ Routing Switch
24 Mar 2023
6
Mirror Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
24 Mar 2023
7
Syslog Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
24 Mar 2023
8
DDoS Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
23 Mar 2023
9
TACACS+ Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
23 Mar 2023
10
AAA Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
22 Mar 2023
11
IP Source Guard Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
21 Mar 2023
12
DHCP Snooping Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
21 Mar 2023
13
ARP Inspection Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switch
20 Mar 2023
14
dot1x Configuration - COMMANDO Marshall C3500 Series Core and Data Center L3+ Routing Switches
17 Mar 2023
15
ACL Configuration - COMMANDO Marshall C3500 Series Core and Data Center L3+ Routing Switches
17 Mar 2023
16
MVR Configuration - COMMANDO Marshall C3500 Series Core and Data Center L3+ Routing Switches
16 Mar 2023
17
PIM-DM Configuration - COMMANDO Marshall C3500 Series Core and Data Center L3+ Routing Switches
16 Mar 2023
18
PIM-SM Configuration - COMMANDO Marshall C3500 Series Core and Data Center L3+ Routing Switches
16 Mar 2023
19
IGMP Snooping Configuration - COMMANDO Marshall C3500 Series Core & Data Center L3+ Routing Switches
16 Mar 2023
20
Route Map Configuration - COMMANDO Marshall C3500 Series Core and Data Center L3+ Routing Switches
14 Mar 2023
21
Prefix List Configuration -COMMANDO Marshall C3500 Series Core and Data Center L3+ Routing Switches
14 Mar 2023
22
BGP Configuration - COMMANDO Marshall C3500 Series Core and Data Center L3+ Routing Switches
14 Mar 2023
23
IS-IS Configuration - COMMANDO Marshall C3500 Series Core and Data Center L3+ Routing Switches
10 Mar 2023
24
OSPF Configuration - COMMANDO Marshall C3500 Series Core and Data Center L3+ Routing Switches
10 Mar 2023
25
RIP Configuration - COMMANDO Marshall C3500 Series Core and Data Center L3+ Routing Switches
10 Mar 2023
26
Port Security Configurations - COMMANDO C3500 Series Cloud and Data Center L3+ Routing Switches
10 Mar 2023
27
Default, Static, Connected Route Configurations - COMMANDO Marshall C3500 Series L3+ Routing Switch
03 Mar 2023
28
DNS Configuration - COMMANDO Marshall C3500 Series Core and Data Center Routing Switches
03 Mar 2023
29
DHCP Configuration - COMMANDO Marshall C3500 Series L3+ Core and Data Center Routing Switches
24 Feb 2023
30
ARP Configuration - COMMANDO Marshall C3500 Series Core and Data Center L3+ Routing Switch
24 Feb 2023
31
Port Xconnect Configuration - COMMANDO Marshall C3500 Series L3+ Core & Data Center Routing Switches
24 Feb 2023
32
Hash Load Balance Commands - COMMANDO Marshall C3500 Series L3+ Core & Data Center Routing Switches
24 Feb 2023
33
Multi-Chassis Link Aggregation (MLAG) Configuration - COMMANDO C3500 Series L3+ Routing Switches
23 Feb 2023
34
Spanning Tree Protocols (STP) Configuration - COMMANDO Marshall C3500 Series L3+ Routing Switches
15 Feb 2023
35
Layer 2 Protocol Tunneling - COMMANDO Marshall C3500 Series L3+ Core & Data Center Routing Switches
15 Feb 2023
36
Loopback Detection Configuration - COMMANDO C3500 Series L3+ Core and Data Center Routing Switches
14 Feb 2023
37
Flow & Storm Control Configuration - COMMANDO C3500 Series L3+ Core and Data Center Routing Switches
14 Feb 2023
38
LACP Configuration - COMMANDO Marshall C3500 Series L3+ Core and Data Center Routing Switches
13 Feb 2023
39
Interface Configurations - COMMANDO Marshall C3500 Series L3+ Core and Data Center Routing Switches
13 Feb 2023
40
Basic Commands - COMMANDO Marshall C3500 Series L3+ Core and Data Center Routing Switches
13 Feb 2023
41
Accessing Command Modes - COMMANDO Marshall C3500 Series L3+ Core and Data Center Routing Switches
09 Feb 2023
42
Basic Commands and Access - COMMANDO Marshall C3500 Series L3+ Core and Data Center Routing Switches
08 Feb 2023
43
C3500-24X+2C -- COMMANDO Marshall C3500 24x 10G SFP+, 2x 100G QSFP28 Uplinks, Fiber Routing Switch
23 May 2022
44
C3500-24X+2Q -- COMMANDO Marshall C3500 24x 10G SFP+, 2x 40G QSFP+ Uplinks, Fiber Routing Switch
23 May 2022
45
C3500-24X -- COMMANDO Marshall C3500 24x 10G SFP+, Fiber Routing Switch --Core & Data Center Switch
23 May 2022

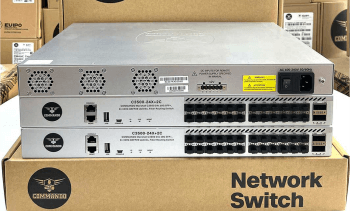

C3500-24X+2C

COMMANDO Marshall C3500 24x10G SFP+, 2x100G QSFP28, AC+DC, Fiber Routing Switch


24 x 10G SFP+ ports
2 x 100G QSFP28 Uplink ports
1 x RJ45 Management port
1 x RJ45 Console port
1 x Mini USB Console port
1 x USB 2.0 Storage port
Switching Capacity: 880 Gbps
Thunder Protection: ±6 KV
Power: 100W
3 Temperature Control Fans
Power Supply: Dual 1+1 Power Supplies (AC + DC)
AC: 100~240V 50/60Hz, DC: 12V, 8.3A
MarshallOS L3+ IP Services Software Feature Set
L3+ 100G QSFP28 Fiber Routing Switch
5 Year Extendable Warranty

https://www.commandonetworks.com/switches

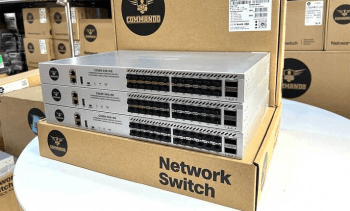

C3500-24X+2Q

COMMANDO Marshall C3500 24x10G SFP+, 2x40G QSFP+, AC+DC, Fiber Routing Switch


24x 10G SFP+ ports
2 x 40G QSFP+ Uplink ports
1 x RJ45 Management port
1 x RJ45 Console port
1 x Mini USB Console port
1 x USB 2.0 Storage port
Switching Capacity: 640 Gbps
Thunder Protection: ±6 KV
Power: 100W
3 Temperature Control Fans
Power Supply: Dual 1+1 Power Supplies (AC + DC)
AC: 100~240V 50/60Hz, DC: 12V, 8.3A
MarshallOS L3+ IP Services Software Feature Set
L3+ 40G QSFP+ Fiber Routing Switch
5 Year Extendable Warranty

https://www.commandonetworks.com/switches

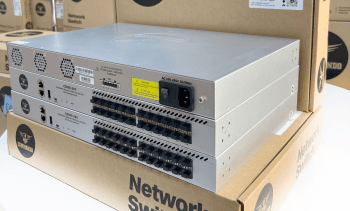

C3500-24X

COMMANDO Marshall C3500 24x10G SFP+, AC+DC, Fiber Routing Switch


24 x 10G SFP+ ports
1 x RJ45 Management port
1 x RJ45 Console port
1 x Mini USB Console port
1 x USB 2.0 Storage port
Switching Capacity: 480 Gbps
Thunder Protection: ±6 KV
Power: 100W
3 Temperature Control Fans
Power Supply: Dual 1+1 Power Supplies (AC + DC)
AC: 100~240V 50/60Hz, DC: 12V, 8.3A
MarshallOS L3+ IP Services Software Feature Set
L3+ 10G SFP+ Fiber Routing Switch
5 Year Extendable Warranty

https://www.commandonetworks.com/switches

SOFTWARE HIGHLIGHTS

Data Center Features

VSF (Virtual Switch Framework)
Priority Flow Control (PFC), Explicit Congestion Notification (ECN) and Data Center TCP
MLAG (Multi-Chassis Link Aggregation)
Overlay technology NVGRE/VXLAN/GENEVE
RPC-API for SDN (Software Defined Network

L3 Features

Dynamic Routing (IPv4 Based) BGP4, RIPv1/v2, OSPFv2, IS-IS.
Dynamic Routing (IPv6 Based) RIPng, OSPFv3, BGP4+
OSPF multiple process
Policy-based Routing (PBR) for IPv4 and IPv6
VRRP
URPF
ECMP
BFD
IGMP v1/v2/v3, IGMP Proxy
Static Multicast Route
Multicast Receive Control
Illegal Multicast Source Detect
ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit
Anti ARP/NDP Cheat, Anti ARP/NDP Scan. Dynamic ARP Inspection (DAI)
DNS Client, DNS Relay
GRE Tunnel
Static Route

IPv6 Features

6to4 Tunnel, Configured Tunnel, ISATAP Tunnel, GRE Tunnel
ICMPv6, ND, DNSv6
IPv6 LPM Routing, IPv6 Policy-based Routing (PBR)
IPv6 VRRPv3, IPv6 URPF, IPv6 RA
RIPng, OSPFv3, BGP4+
MLD Snooping, IPv6 Multicast VLAN
MLDv1/v2, IPv6 ACL, IPv6 QoS

QoS

12 Queues
SWRR, SP, WRR, DWRR, SDWRR
Traffic Classification Based on 802.1p COS, ToS, DiffServ DSCP, ACL, port number
Traffic Policing
PRI Mark/Remark

ACL

IP ACL, MAC ACL, IP-MAC ACL
Standard and Expanded ACL Based on source/destination IP or MAC, IP Protocol
TCP/UDP port, DSCP, ToS, IP Precedence), VLAN, Tag/Untag, CoS
REDIRECT and Accounting based ACL
Rules can be configured to port, VLAN, VLAN routing interfaces
Time Ranged ACL

Security

802.1x AAA
Port, MAC based authentication
Accounting based on time length and traffic
Guest VLAN and auto VLAN
RADIUS for IPv4 and IPv6
TACACS+ for IPv4 and IPv6
MAB

DHCPv4/v6 Traffic Monitor

DHCP Server/Client for IPv4/IPv6
DHCP Relay/Option 82, 252
DHCP Snooping/Option 82

Link Aggregation

802.3ad – Link Aggregation Control Protocol (LACP)
Multi-chassis Link Aggregation (M-LAG)

MPLS

LDP
RSVP
LDP tunneling (LDP over RSVP)
Fast reroute (FRR)
IPv6 tunneling (6PE)
Ingress, transit, and egress label-switched paths (LSPs)
IPv4 Layer 3 VPNs
IPv6 Layer 3 VPNs (6VPE)
Layer 2 circuits

Visibility

Switched Port Analyzer (SPAN)
RSPAN
ERSPAN
Port mirroring
sFlow

Data Center Bridging

Priority-based flow control (PFC)—IEEE 802.1Qbb
Data Center Bridging Exchange Protocol (DCBX), DCBx FCoE, and iSCSI type, length, and value (TLVs)

Troubleshooting

Configuration via CLI/ WEB GUI with console, telnet, or SSH.
Diagnostics with Show, debug, and familiar and well known commands
Port mirroring
IP tools like L2 ping and Extended ping and trace route.
sFlow Traffic Analysis

L2 Features

802.1D – Spanning Tree Protocol (STP)
802.1w – Rapid Spanning Tree Protocol (RSTP)
802.1s – Multiple Spanning Tree Protocol (MSTP)
VLAN Spanning Tree Protocol (VSTP)
802.1AB Link Layer Discovery Protocol (LLDP)
VLAN Registration Protocol
QinQ
Root Guard
BPDU Guard
BPDU Tunnel
IP Source Guard
LLDP and LLDP-MED
UDLD
MAC VLAN, Voice VLAN, Protocol VLAN, Multicast VLAN
QinQ, Selective QinQ, Flexible QinQ

L1 Features

IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
IEEE 802.1ad: QinQ
IEEE 802.1D-2004: Spanning Tree Protocol (STP)
IEEE 802.1p: Class-of-service (CoS) prioritization
IEEE 802.1Q: Virtual Bridged Local Area Networks
IEEE 802.1s: Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1w: Rapid Spanning Tree Protocol (RSTP)
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-T
IEEE 802.3ab: 1000BASE-T
IEEE 802.3z: 1000BASE-X
IEEE802.3an, 10GBASE-T
IEEE 802.3ae: 10-Gigabit Ethernet on fiber
IEEE 802.3bm: 40-Gigabit/100-Gigabit Ethernet on fiber
IEEE 802.3ad: Link Aggregation Control Protocol (LACP)
IEEE 802.1Qbb: Priority-based Flow Control
IEEE 802.1Qaz: Enhanced Transmission Selection
IEEE802.3ak(10GBASE-CX4)
Port loopback detection
802.3ad LACP, max 128 group trunks with max 8 ports for each trunk
LACP load balance
N:1 Port Mirroring
RSPAN
ERSPAN
MRPP
IEEE802.1Q, 4K VLAN
GVRP
N:1 VLAN Translation
Broadcast / Multicast / Unicast Storm Control
IGMP v1/v2/v3 Snooping and L2 Query
ND Snooping
MLDv1/v2 Snooping
Port Security
Flow Control: HOL, IEEE802.3x
Bandwidth Control

Security Network Management

CLI, WEB GUI, Telnet, SNMPv1/v2c/v3 through IPv4 and IPv6
Syslog and external Syslog Server HTTP SSL
SNMP MIB, SNMP TRAP
FTP/TFTP/HTTP
SNTP/NTP
RMOM 1,2,3,9
Authentication by Radius/TACACS
SSH v1/v2
Dual firmware images/ Configuration files
802.3ah OAM, 802.1ag OAM

GREEN Features

IEEE 802.3az (Energy Efficient Ethernet)
Auto FAN Speed Control, Temperature Alarm
LED Shut-Off
